PWCON-02B / 03B / 04B
Neutrik powerCON TRUE1 TOP Cable
Professional 16A cable assembly with Neutrik powerCON® TRUE1 TOP connectors, TITANEX® H07RN-F cable and a choice of sealing-cap options.
16AIP65 / IP67powerCON® TRUE1 TOP
Product ID
PWCON-02B-0150-1.5
Price on request
1
Locking power connections
Locking connections. A choice of sealing caps.
Neutrik powerCON® TRUE1 TOP provides a locking connection for professional production equipment. Choose no cap, a rubber cap or a ruggedized sealing cap to suit how disconnected connectors will be stored and handled.
Connector protection ratings apply under the manufacturer's specified conditions.
Technical information
Full product specifications
Explore complete product data, identification, connectors, cable construction, electrical and environmental ratings, compliance and documentation.
Product data
Technical specifications
| Field | Value |
|---|---|
| Product type | powerCON® TRUE1 TOP cable assembly |
| Connector manufacturer | Neutrik |
| Connector system | Neutrik powerCON® TRUE1 TOP |
| Power IN connector | Neutrik powerCON® TRUE1 TOP cable connector |
| Power OUT connector | Neutrik powerCON® TRUE1 TOP cable connector |

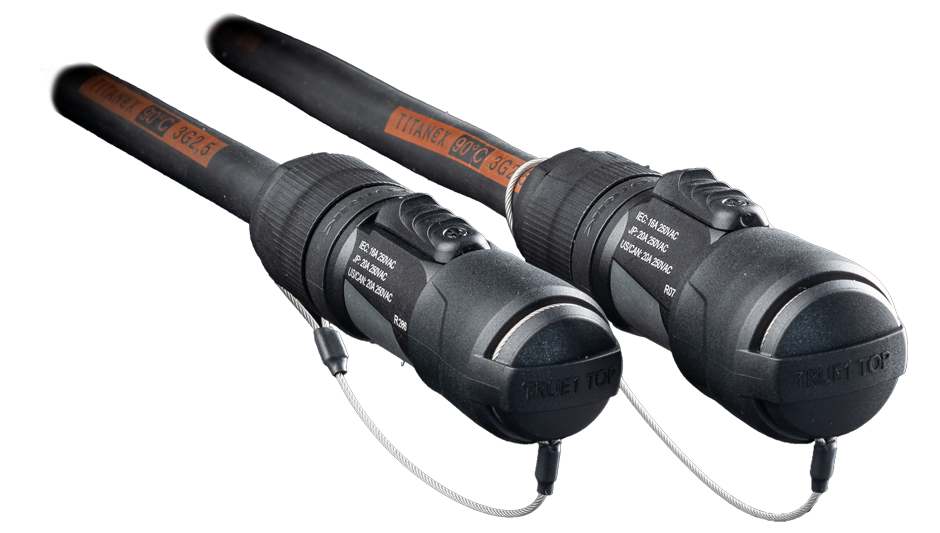

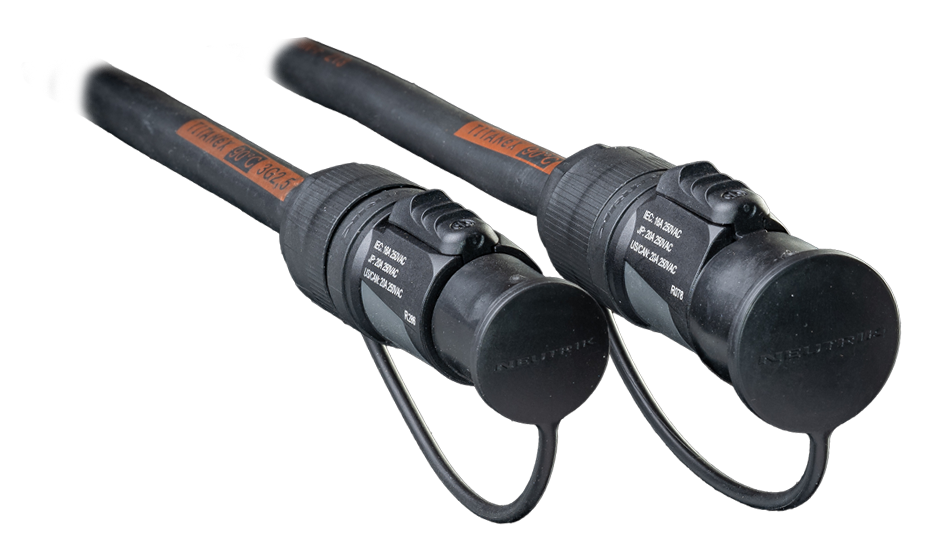

| Sealing-cap options | No cap: 02B · IP65 rubber cap: 03B · IP65/67 ruggedized sealing cap: 04B |
| Breaking capacity | Yes |
| Degree of protection | IP65 connector system; IP65/67 with the selected ruggedized sealing cap, subject to correct use and the connector manufacturer's specifications |
| Cable type | TITANEX® H07RN-F |
| Standard lengths | 1.5, 2.5, 5, 10, 15, 20, 25, 30, 40 and 50 m |
Identification
Built for fast identification.
Shrink tubes for self-labelling
Each cable assembly includes two 10 cm transparent, unshrunk tubes for your own identification labels.
Cable length identification
The cable length is marked at both ends for quick identification during setup and pack-down.
Connector system
Select the sealing-cap option.
Cable
Built with TITANEX® H07RN-F.
Flexible handling
Flexible TITANEX® H07RN-F cable supports handling, routing and coiling during repeated setup and pack-down.
Mechanical durability
The cross-linked elastomer sheath provides resistance to mechanical stress encountered during professional use.
Resistance to the elements
The cable material offers resistance to oil, UV exposure and moisture within the conditions specified in the TITANEX® datasheet.
Electrical
Electrical specifications
| Field | Value |
|---|---|
| Assembly rated current | 16A |
| Assembly rated voltage | 250 V AC |
| Pole count | 2P+E (3 poles) |
| Electrical protection class | Class I |
| Breaking capacity | Yes |
| Cable nominal voltage | U₀/U 450/750 V |
| Number of cores | 3, including protective earth |
| Cable cross-section, option 1 | 3G1.5 mm² |
| Cable cross-section, option 2 | 3G2.5 mm² |
Environment
Environmental ratings
| Field | Value |
|---|---|
| Cable operating temperature, flexing | −25 °C to +55 °C |
| Connector protection rating | IP65; IP65/67 with the selected ruggedized sealing cap |
| Cable oil resistance | Yes |
| Cable UV resistance | Yes |
| Cable water resistance | Resistant to splashes and humidity |
| Indoor use | Yes |
| Outdoor use | Yes, subject to correct connector mating or use of the appropriate sealing cap |
Cable-material properties refer to the TITANEX® H07RN-F cable. Use of the complete assembly must also comply with the connector specifications and operating conditions.
Compliance
Compliance
| Field | Value |
|---|---|
| Cable designation | H07RN-F |
| Cable standard | EN 50525-2-21 |
| Core identification | HD 308 S2 |
| Cable flame test | IEC/EN 60332-1-2 |
| Cable RoHS compliance | Yes |
| Protective conductor | Included |
| Electrical protection class | Class I |
| Connector manufacturer | Neutrik |
| Connector system | powerCON® TRUE1 TOP |
| Connector standard | IEC/EN 60320-1 |
| Breaking capacity | Yes |
| Connector protection rating | IP65; IP65/67 with the selected ruggedized sealing cap |
| Manufacturer | Tesla Entertainment Kft. |
| Country of origin | Hungary |
Documentation
Downloads
TITANEX® H07RN-F Data Sheet
PDF · EN
Technical Specification
PDF · EN
EU Declaration of Conformity
PDF · EN
Product information on this webpage is provided for guidance and may contain errors or omissions. Always refer to the latest downloadable product documentation for the definitive technical specifications and instructions.
