Modular PDUs · TTMM Series

TTMM-003

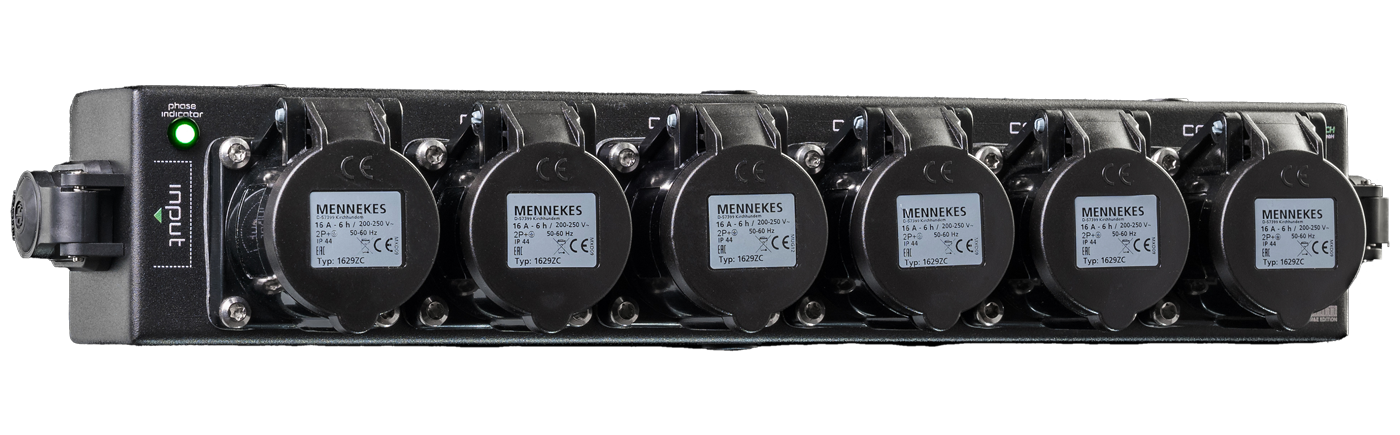

16A Modular PDU · powerCON® TRUE1 input · 6× configurable auxiliary outputs · TRUE1 loop output

16AIP65 enclosure6 auxiliary outputsIndoor & outdoor

Input

Protection

1× powerCON® TRUE1Not applicable

Outputs

Protection

1× powerCON® TRUE1Looped
6× configurable auxiliary outputsNot applicable
Auxiliary connector typeF2
Product ID
TTMM-003-F2

Price on request

1

Built for flexible local distribution

Six local outputs. One loop-through connection.

TTMM-003 brings six configurable auxiliary outputs directly to the working area. A powerCON® TRUE1 input and loop output allow the 16A supply to continue to the next compatible module, so distribution can be extended one block at a time. The connected loads share the unit’s 16A supply, including any equipment connected through a loop output.

Its IP65 aluminium enclosure can be clamped to a 35-51 mm pipe, suspended from M8 eye bolts or placed on its rubber feet, making it a flexible building block for professional indoor and outdoor productions.

A green phase-presence indicator provides immediate visual confirmation of the incoming supply.

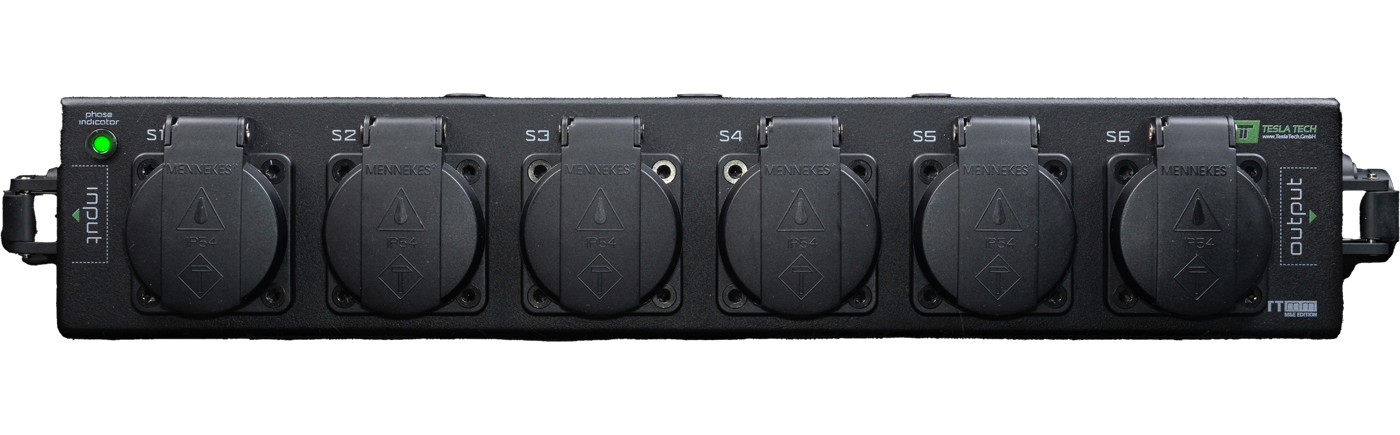

Front of TTMM-003 with six closed Schuko outlets labelled S1 to S6, the phase indicator and the input and output connectors
Configurable auxiliary outputs
6×Configurable auxiliary outputs
TRUE1 loop output
1×TRUE1 loop output
Indoor & outdoor use
IP65Indoor & outdoor use

Technical information

Full product specifications

Explore complete product data, features, functionality, mechanical and electrical design, environmental ratings, compliance, configuration options and documentation.

Custom modular solutions

Build the right modular system.

Tell us what needs to connect, where the modules will be used and how the system needs to expand. Our engineers will help define the right TTMM configuration.

Talk to an EngineerExplore Modular PDUs
