Modular PDUs · TTMM Series

TTMM-004

16A Modular PDU · powerCON® TRUE1 input · 6× configurable auxiliary outputs · TRUE1 loop output

16AIP65 enclosure6 auxiliary outputsIndoor & outdoor

Input

Protection

1× powerCON® TRUE1Not applicable

Outputs

Protection

1× powerCON® TRUE1Looped
6× configurable auxiliary outputsNot applicable
Auxiliary connector typeF2
Product ID
TTMM-004-F2

Price on request

1

Built for compact local distribution

Six local outputs in a 300 mm-wide format.

TTMM-004 combines six configurable auxiliary outputs and a powerCON® TRUE1 loop output in a compact 300 mm-wide aluminium enclosure. The TRUE1 input and loop output allow the 16A supply to continue to the next compatible module while the auxiliary outputs distribute power locally. The connected loads share the unit’s 16A supply, including any equipment connected through a loop output.

Its IP65 aluminium enclosure can be clamped to a 35-51 mm pipe, suspended from M8 eye bolts or placed on its rubber feet, making it a flexible building block for professional indoor and outdoor productions.

A green phase-presence indicator provides immediate visual confirmation of the incoming supply.

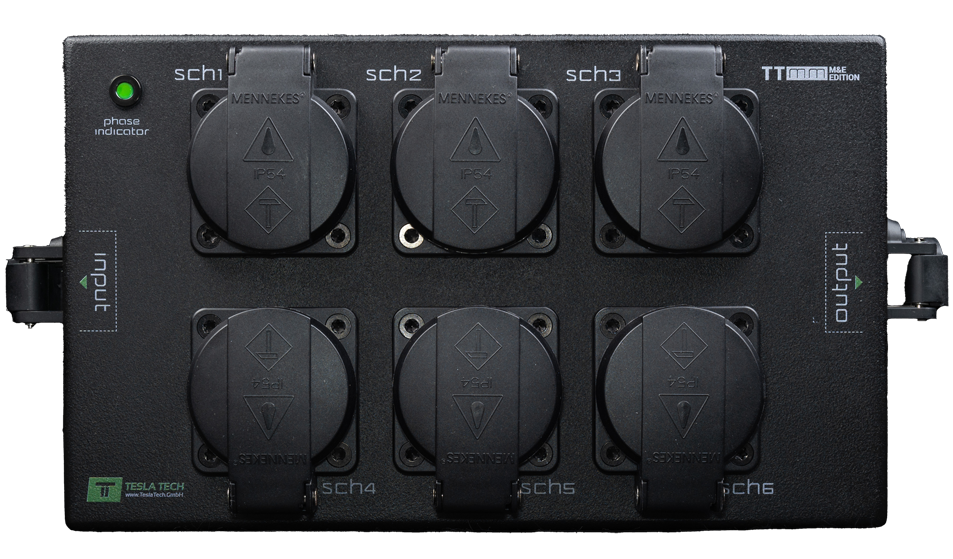

Front of TTMM-004 with six closed Schuko outlets labelled sch1 to sch6 in two rows, the phase indicator and the input and output connectors
Configurable auxiliary outputs
6×Configurable auxiliary outputs
TRUE1 loop output
1×TRUE1 loop output
Indoor & outdoor use
IP65Indoor & outdoor use
