Modular PDUs · TTMM Series

TTMM-101

6-channel modular breakout PDU · Socapex input · 6× configurable outputs · optional Socapex loop output

6 channels16A per channelIP65 enclosureIndoor & outdoor

Input

Protection

SocapexNot applicable

Outputs

Protection

6× configurable socket outletsNot applicable
1× Optional SocapexLooped

Dust caps apply to the Socapex connectors.

Product ID
TTMM-101-LO-F2-X-N

Price on request

1

Built for Socapex breakout

Six circuits. Six local outputs.

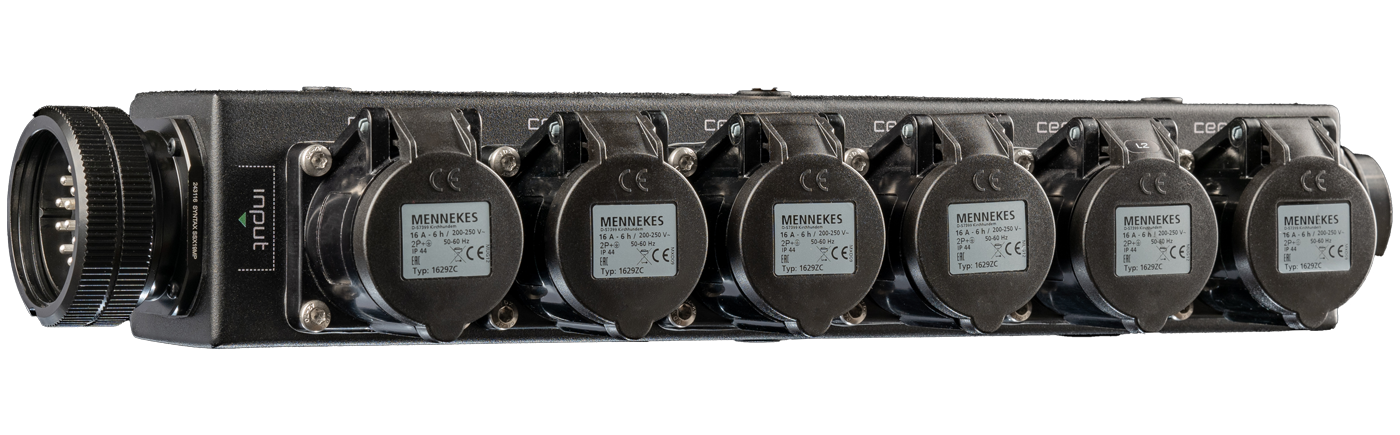

TTMM-101 breaks out six 16A circuits from a single Socapex multicore input into six configurable local outputs. An optional looped Socapex output allows the multicore connection to continue to the next distribution point.

Optional individual phase-presence LEDs provide immediate visual confirmation on every channel. The IP65 aluminium enclosure can be clamped to a 35-51 mm pipe, suspended from M8 eye bolts or placed on its rubber feet for professional indoor and outdoor productions.

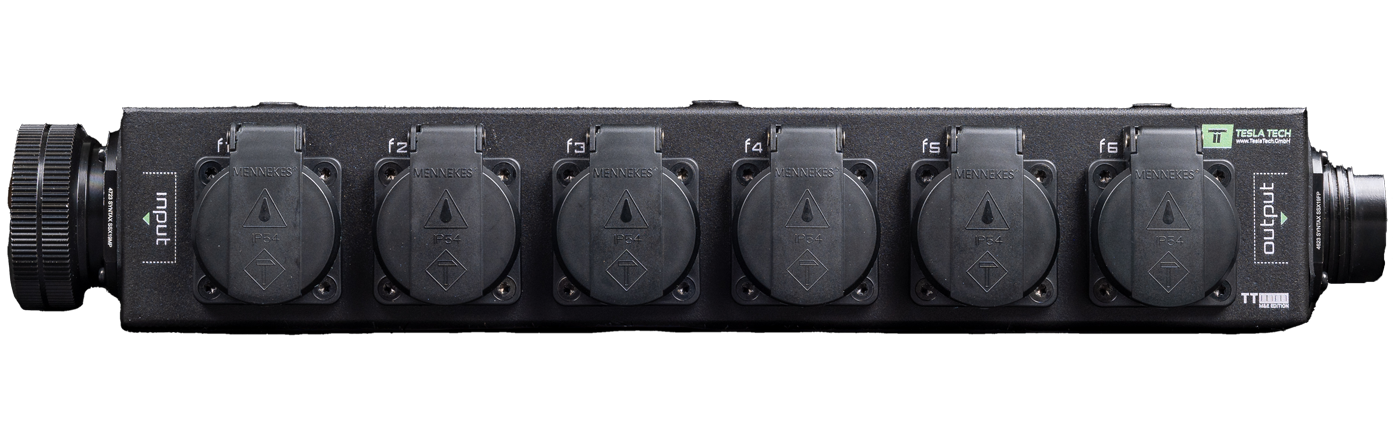

Front of TTMM-101 with the Socapex input, six closed Schuko outlets labelled f1 to f6 and the Socapex loop output
Separate channels
6Separate channels

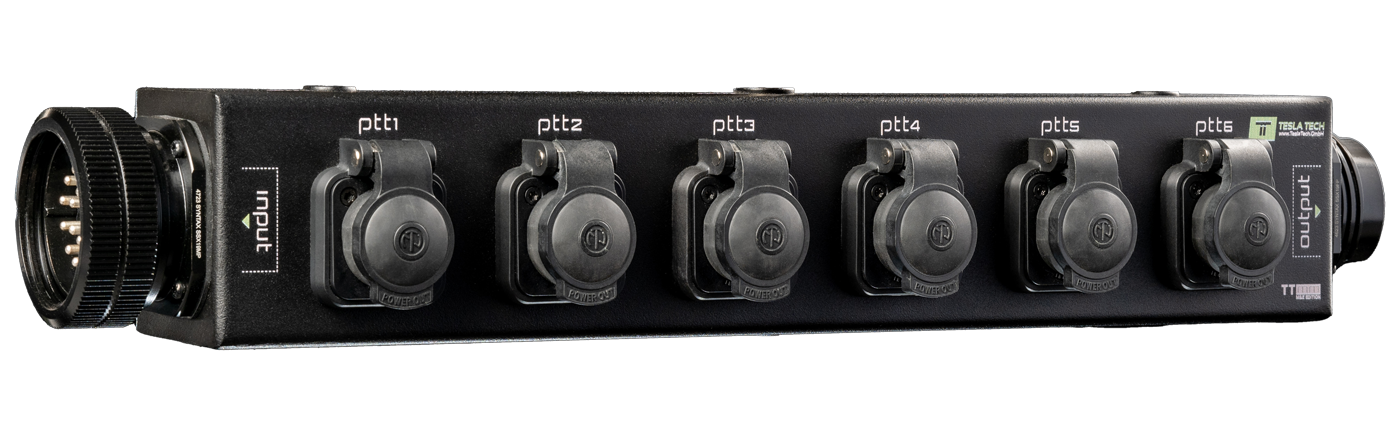

Configurable outputs
6xConfigurable outputs
Socapex loop output
OptionalSocapex loop output

Technical information

Full product specifications

Explore complete product data, features, functionality, mechanical and electrical design, environmental ratings, compliance, configuration options and documentation.

Custom modular solutions

Build the right modular system.

Tell us what needs to connect, where the modules will be used and how the system needs to expand. Our engineers will help define the right TTMM configuration.

Talk to an EngineerExplore Modular PDUs
TTMM-101-LO-F2-X-N
