Modular PDUs · TTMM Series

TTMM-002

16A Modular PDU · powerCON® TRUE1 input · 5× powerCON® TRUE1 outputs

16AIP65 enclosure5 TRUE1 outputsIndoor & outdoor

Input

Protection

1× powerCON® TRUE1Not applicable

Outputs

Protection

5× powerCON® TRUE1 outputsNot applicable
Product ID
TTMM-002

Price on request

1

Built for TRUE1 distribution

One input. Five locking outputs.

TTMM-002 distributes a single 16A powerCON® TRUE1 input across five powerCON® TRUE1 outputs, bringing multiple locking connections directly to the working area in one compact module. The connected loads share the unit’s 16A supply.

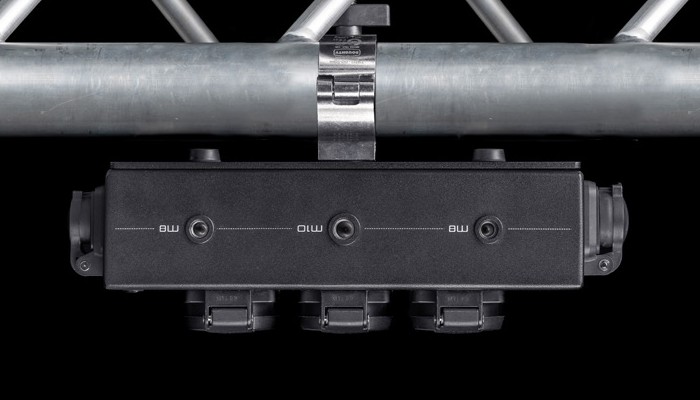

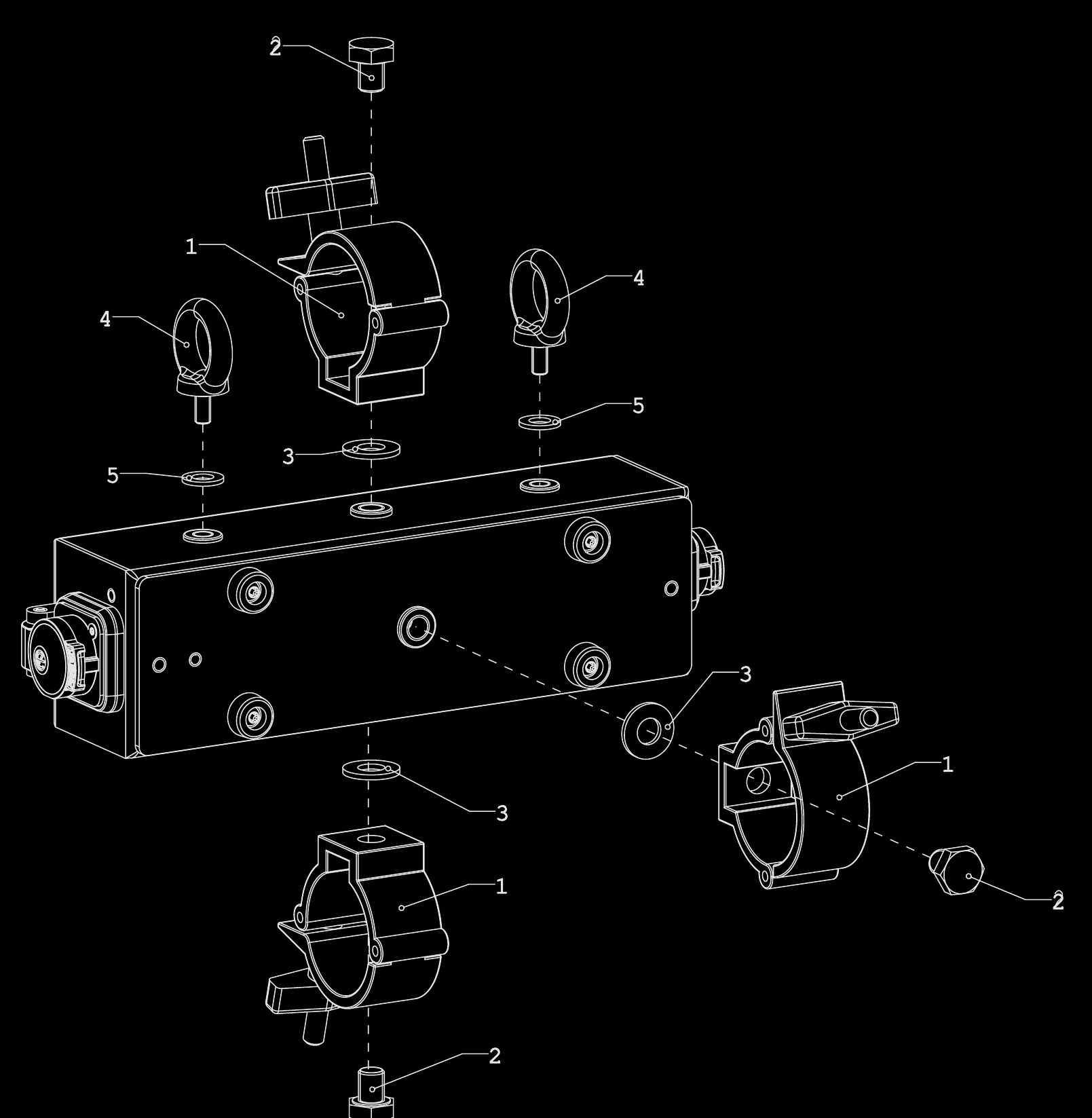

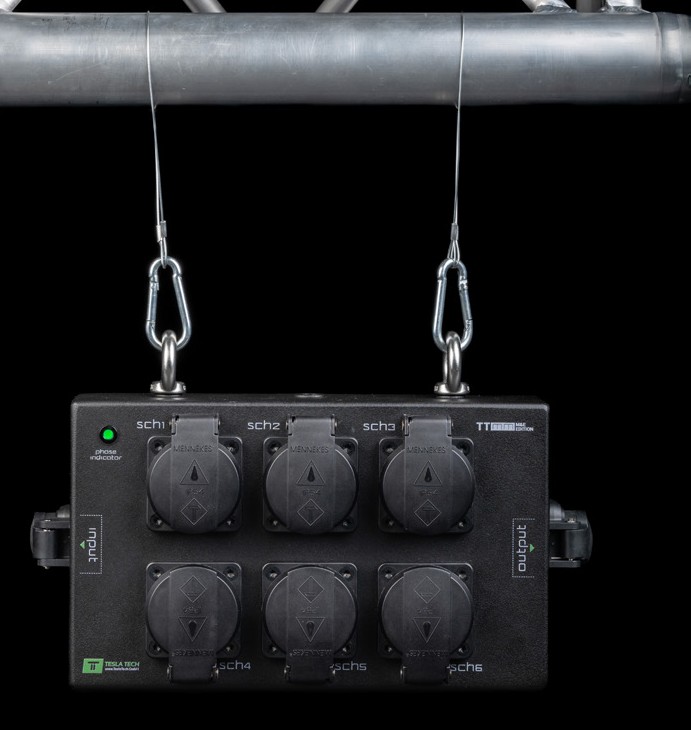

Its IP65 aluminium enclosure can be clamped to a 35-51 mm pipe, suspended from M8 eye bolts or placed on its rubber feet, making it a flexible building block for professional indoor and outdoor productions.

A green phase-presence indicator provides immediate visual confirmation of the incoming supply.

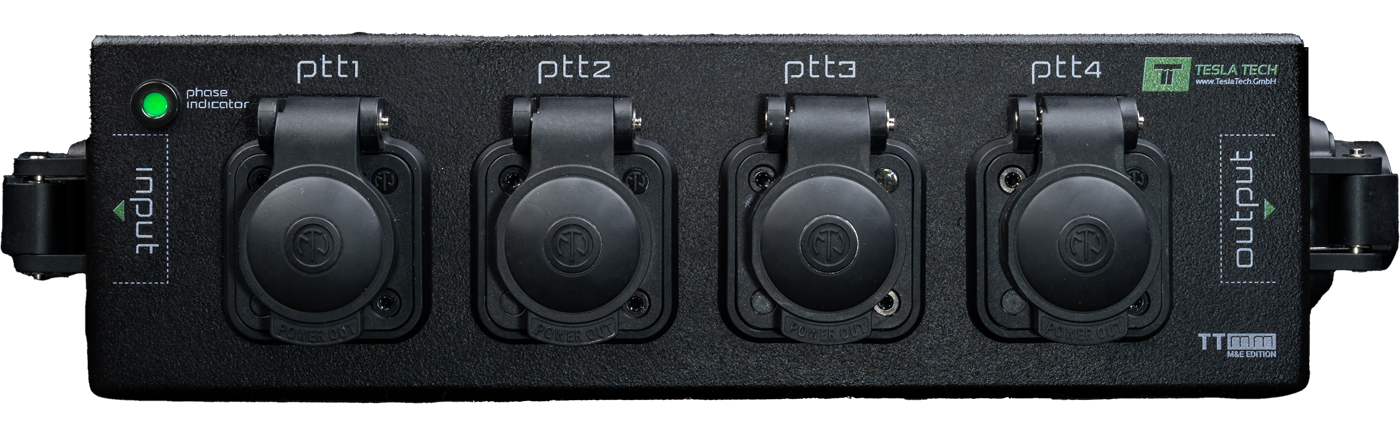

Front of TTMM-002 with four closed powerCON TRUE1 outputs labelled ptt1 to ptt4, the phase indicator and the input and output connectors
TRUE1 outputs
5×TRUE1 outputs
Rated current
16ARated current
Indoor & outdoor use
IP65Indoor & outdoor use

Technical information

Full product specifications

Explore complete product data, features, functionality, mechanical and electrical design, environmental ratings, compliance, configuration options and documentation.

Custom modular solutions

Build the right modular system.

Tell us what needs to connect, where the modules will be used and how the system needs to expand. Our engineers will help define the right TTMM configuration.

Talk to an EngineerExplore Modular PDUs
