Modular PDUs · TTMM Series

TTMM-201

6-channel modular breakout PDU · HAN® 16E input · 6× configurable outputs · optional HAN® 16E loop output

6 channels16A per channelIP65 enclosureIndoor & outdoor

Input

Protection

1× HAN® 16E, 6 channelsNot applicable

Outputs

Protection

6× configurable socket outletsNot applicable
1× Optional HAN® 16ELooped

Dust caps apply to the HAN®16E connectors.

Product ID
TTMM-201-LO-F2-X-N

Price on request

1

Built for six-channel HAN distribution

Six HAN channels. Six local outputs.

TTMM-201 breaks out six 16A channels from a single HAN® 16E multicore input into six configurable local outputs. An optional looped HAN® 16E output allows the multicore connection to continue to the next distribution point.

Optional individual phase-presence LEDs provide immediate visual confirmation on every channel. The IP65 aluminium enclosure can be clamped to a 35-51 mm pipe, suspended from M8 eye bolts or placed on its rubber feet for professional indoor and outdoor productions.

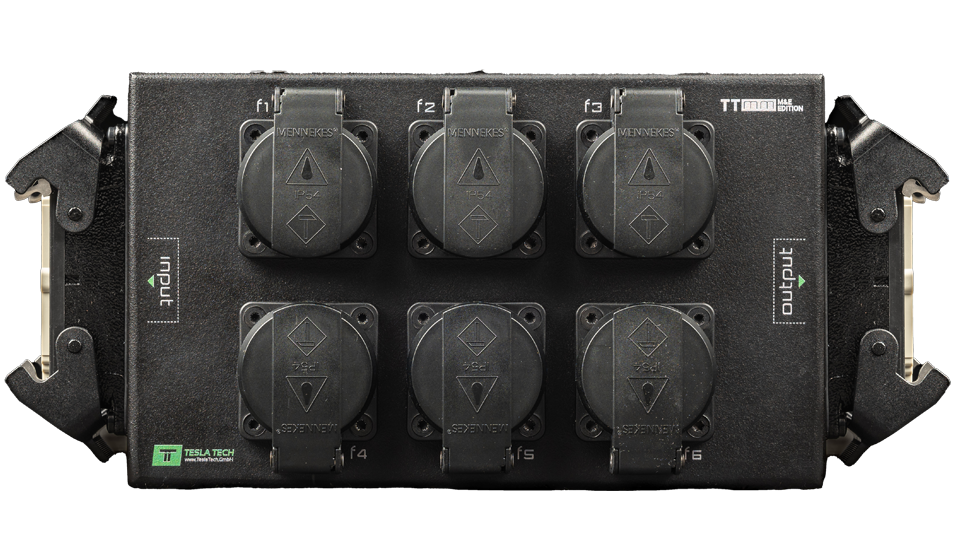

Front of TTMM-201 with the HAN® 16E input and loop output and six closed Schuko outlets labelled f1 to f6 in two rows
Separate channels
6Separate channels
Configurable outputs
6xConfigurable outputs
HAN® 16E loop output
OptionalHAN® 16E loop output

Technical information

Full product specifications

Explore complete product data, features, functionality, mechanical and electrical design, environmental ratings, compliance, configuration options and documentation.

Custom modular solutions

Build the right modular system.

Tell us what needs to connect, where the modules will be used and how the system needs to expand. Our engineers will help define the right TTMM configuration.

Talk to an EngineerExplore Modular PDUs
TTMM-201-LO-F2-X-N
