8-channel modular breakout PDU · HAN® 16E input · 8× configurable outputs · optional HAN® 16E loop output
Input
Protection
Outputs
Protection
Dust caps apply to the HAN®16E connectors.
Price on request

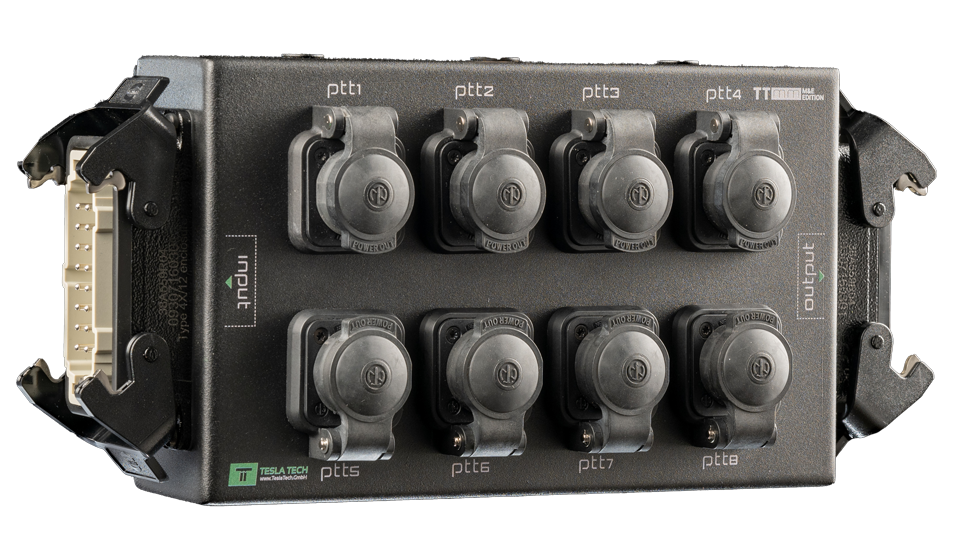

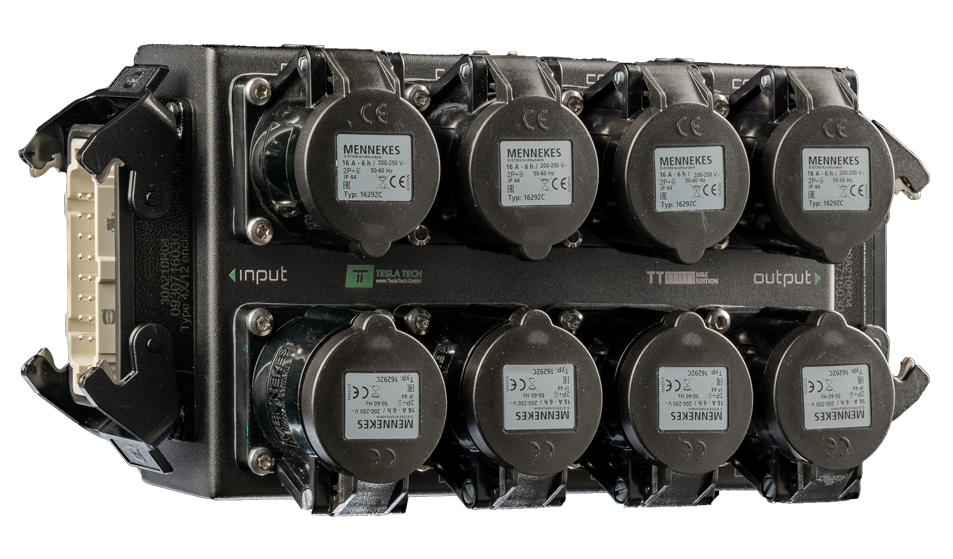

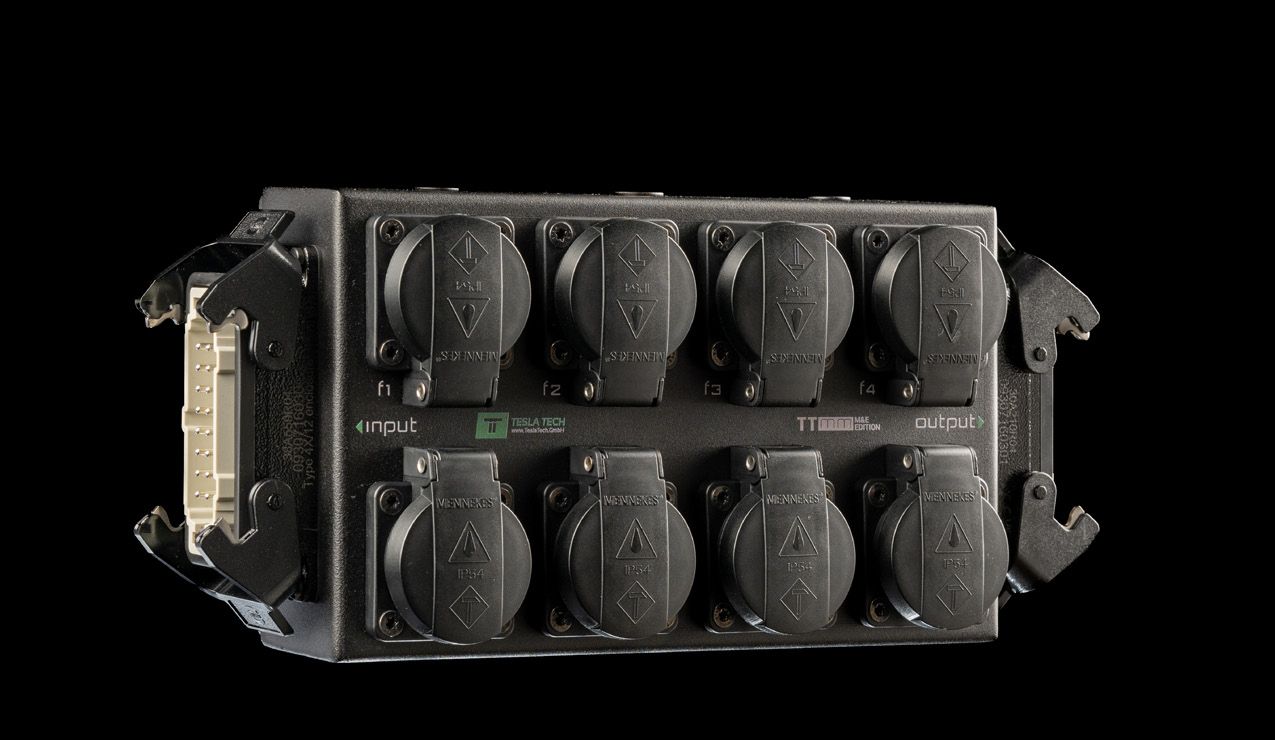

Built for eight-channel HAN distribution
TTMM-202 breaks out eight 16A channels from a single HAN® 16E multicore input into eight configurable local outputs. An optional looped HAN® 16E output allows the multicore connection to continue to the next distribution point.
Optional individual phase-presence LEDs provide immediate visual confirmation on every channel. The IP65 aluminium enclosure can be clamped to a 35-51 mm pipe, suspended from M8 eye bolts or placed on its rubber feet for professional indoor and outdoor productions.
Technical information
Explore complete product data, features, functionality, mechanical and electrical design, environmental ratings, compliance, configuration options and documentation.
Product data
| Input | Input Protections |
|---|---|
| 1× HAN® 16E 16A 230 V 16P, 8ch (Harting) | Not applicable |
| Outputs | Output Protections |
|---|---|
| 8x Auxiliary connector 230 V 3P (configurable) | Not applicable |
| 1× HAN® 16E 16A 230 V 16P, 8ch (Harting), loop output. Included in selected configuration | Not applicable |
Features
Mounting & rigging
Integrated M10 and M8 mounting points allow TTMM modules to be installed directly where power is needed. The enclosure can be clamped to a pipe, suspended with eye bolts, steel cables, ropes or quick-tie fasteners, or placed securely on its soft rubber feet.
The same compact enclosure adapts to truss structures, scaffold installations and ground-level use without changing the electrical configuration.
An integrated M10 mounting point supports secure half-clamp installation on pipes from 35 mm to 51 mm. Rubber washers allow angled positioning when the module cannot be mounted horizontally.
Two M8 threaded inserts support suspension with eye bolts, steel cables, ropes or quick-tie fasteners.
Soft rubber feet allow the module to be placed securely on a level surface when suspended mounting is not required.
Design
| Design Item | Specification |
|---|---|
| Ingress Protection | IP65-rated enclosure. Completely dust-tight and protected against low-pressure water jets from any direction. Suitable for professional indoor and outdoor environments. |
| Enclosure Material | 2.0 mm powder-coated aluminium sheet with a fine-textured finish, providing mechanical strength, corrosion resistance and long-term durability. |
| Overall Dimensions | 95 × 370 × 155 mm (H × W × D) |
| Labelling | All connectors are identified with UV-printed markings resistant to sunlight, abrasion and solvent-based cleaning agents. |
| Top Mounting Points | 1× M10 slot for clamp mounting and 2× M8 threaded inserts for eye bolts, steel cables, ropes or quick-tie fasteners. |
| Bottom Mounting Point | 1× M10 slot for clamp-based vertical fixation. |
| Rear Mounting Point | 1× M10 slot for wall or scaffold mounting. |
| Clamp Compatibility | M10 clamp slots are compatible with pipes from 35 mm to 51 mm. Rubber washers support stable angled positioning. |
| Connector Installation | Quick Connector Replacement system. Connectors are mounted with two or four stainless steel screws and sufficient internal cable slack for replacement without disassembling the complete enclosure. |
| Internal Conductor Cross-Section | 16A circuits: 2.5 mm² Cu |
| Internal Cabling | Helukabel H07V-K flexible conductors or equivalent. |
| Terminal Blocks | Wago spring-cage terminals. |
Electrical
| Specification | Value |
|---|---|
| Number of channels | 8 |
| Rated voltage per channel (Un) | 230 V AC, 1P+N+PE |
| Rated current per channel (InA) | 16A |
| Frequency per channel (fn) | 50/60 Hz |
| Maximum continuous load per channel | 3.68 kVA, or 3.68 kW at cos φ = 1 |
| Rated diversity factor with loop output in use (RDF1) | 0.5 |
| Rated diversity factor without loop output in use (RDF2) | 1 |
| Protection class | Class I, protective earth |
Maximum continuous load stated at 30 °C ambient air temperature.
Environment
| Rating | Value |
|---|---|
| Operating temperature | −5 °C to +40 °C, with the average ambient temperature over a 24-hour period not exceeding 35 °C (in accordance with IEC/EN 61439 recommendations). |
| Storage temperature | 0 °C to +40 °C |
| Relative humidity | Maximum 95% from −5 °C to 30 °C, decreasing to 70% at 35 °C and 57% at 40 °C, non-condensing |
| Maximum installation altitude | 2,000 m above sea level |
Compliance
| Category | Details |
|---|---|
| CE Compliance | Components and final assemblies are CE marked and compliant with the applicable EU directives, including the Low Voltage Directive 2014/35/EU and EMC Directive 2014/30/EU. |
| Standards Compliance | EN 61439-1: Low-voltage switchgear and controlgear assemblies, General rules. EN 61439-4: Assemblies for construction sites. |
| Manufacturer Information | Tesla Entertainment Kft., H-1151 Budapest, Károlyi Sándor út 158., Hungary. EU VAT ID: HU26587255. |
| Country of Origin | Hungary. All units are assembled and tested at the Tesla Tech facility in Budapest. |
Configuration
Configure the HAN® 16E loop output, local socket-outlet type, individual phase indicators and HAN® 16E dust-cap protection. The selected options generate one complete and technically valid ordering code.
TTMM-202-LO-F2-X-N
Code structure: TTMM-202-[LOOP]-[SOCKET]-[INDICATOR]-[DUST CAP]
| Code | Type | Rated Current | IP Code | Manufacturer |
|---|---|---|---|---|
| F1 | German / Austrian (Type F) | 16A | IP54 | Mennekes |
| F2 | German / Austrian with gasket (Type F) | 16A | IP54 | Mennekes |
| E1 | French / Belgian (Type E) | 16A | IP44 | Mennekes |
| G1 | British (Type G) | 13A | IP44 | ABL |
| P1 | powerCON® TRUE1 with sealing self-closing cap | 16A | IP65 | Neutrik |
| J1 | Swiss T13 (Type J) | 10A | IP54 | PCE |
| J2 | Swiss T23 (Type J) | 16A | IP54 | PCE |
| B1 | USA / Canada (Type B) | 15A | IP44 | ABL |
| K1 | Danish (Type K) | 16A | IP44 | PCE |
| CE | CEE 6h | 16A | IP54 | Mennekes |
The stated connector IP rating applies when all enclosure lids and covers are fully closed. When connectors are mated, the overall ingress protection level may vary depending on the connected plug.
Documentation
PDF · EN
PDF · EN
PDF · EN
PDF · EN
Product information on this webpage is provided for guidance and may contain errors or omissions. Always refer to the latest downloadable product documentation for the definitive technical specifications and instructions.
