HAN® 16E Cable Assemblies
Six- and eight-channel cable assemblies with HARTING Han® 16E connectors. Choose your connection arrangement, cable length and cross-section, with HELUKABEL JZ-600 or TITANEX® H07RN-F cable.
Price on request
Quantity (cable assemblies)
Multicircuit power connections
Bring multiple power circuits into one cable run for lighting and production equipment.

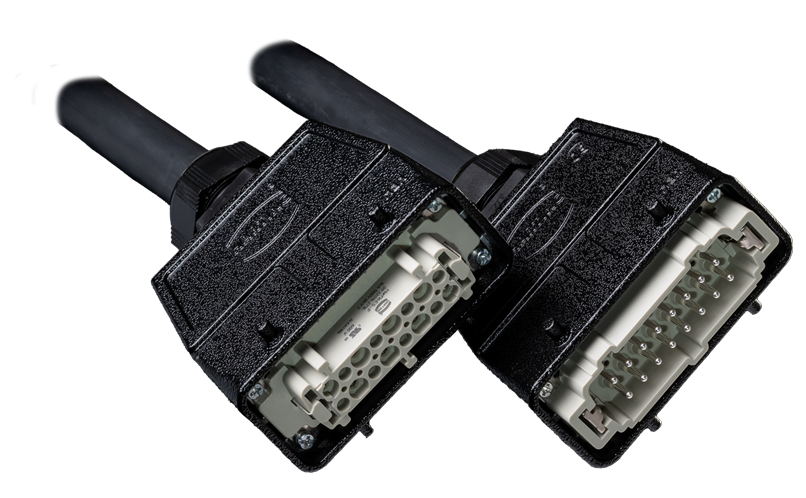

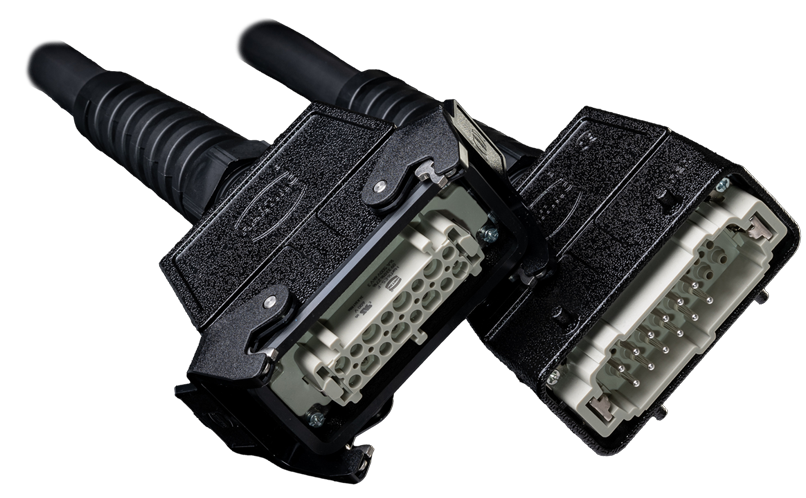

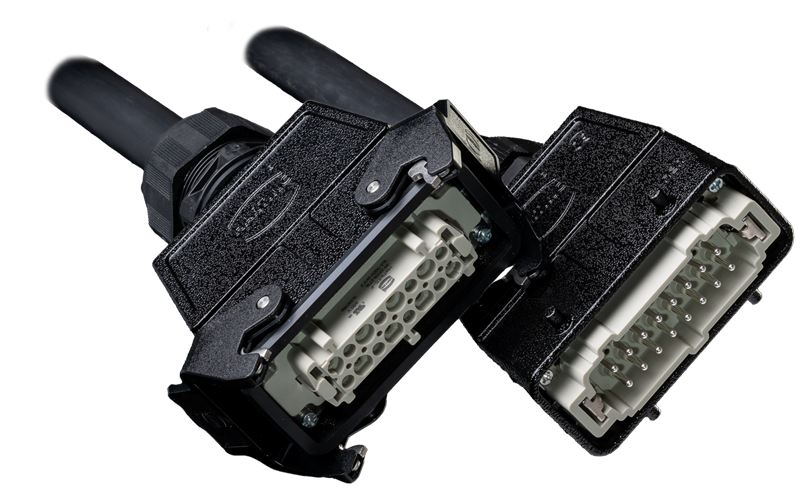

Choose a six- or eight-channel assembly with the panel-to-panel or panel-to-cable arrangement your equipment requires. HARTING Han® 16E connectors with silver-plated crimp contacts are paired with your choice of HELUKABEL JZ-600 or TITANEX® H07RN-F cable.
Technical information
Explore the technical details, available configurations and documentation for this product.
Product data
| Field | Value |
|---|---|
| Product type | HAN 16E Cable Assemblies |
| Connector manufacturer | HARTING |
| Connector system | Han® 16E |
| Channel count options | 6 or 8 |
| Connection arrangement options | Panel-to-panel or panel-to-cable |
| Contact termination | Crimp |
| Contact finish | Silver-plated |
| Cable type | TITANEX® H07RN-F or HELUKABEL JZ-600 |
| Cable construction | 14G for 6-channel variants (01B / 02B) 18G for 8-channel variants (03B / 04B) |
| Conductor cross-section options | 1.5 mm² or 2.5 mm² |
| Standard cable lengths | 1.5, 2.5, 5, 10, 15, 20, 25, 30, 40 and 50 m |
| Connector protection rating | IP65 |
Identification
Each cable assembly includes two 10 cm transparent, unshrunk tubes for your own identification labels.
The cable length is marked at both ends for quick identification during setup and pack-down.
A cable strap is included with assemblies 5 m and longer for convenient storage, transport and handling.
Connector system
Select the channel count and connection arrangement that match your equipment. All four variants use HARTING Han® 16E connectors with silver-plated crimp contacts.
Cable
Choose the cable construction that suits your installation. HELUKABEL JZ-600 uses PVC insulation and sheathing; TITANEX® H07RN-F uses cross-linked elastomer insulation and sheathing. Their operating conditions differ, as shown in the technical specifications.
A multicore PVC control and connection cable with finely stranded copper conductors and numbered cores.
Designed for flexible applications under medium mechanical stress, with free movement and without tensile stress or forced guidance.
Black cores with white numbering support conductor identification. JZ versions include a green/yellow protective conductor.
UV- and weather-resistant PVC supports outdoor fixed installation within the manufacturer’s stated conditions. The cable also offers oil resistance subject to the datasheet limitations.
TITANEX® H07RN-F combines flexibility for handling and coiling with a durable elastomer sheath. These HAN 16E assemblies use multicore cable with a conductor cross-section of 1.5 or 2.5 mm².
Flexible TITANEX® H07RN-F cable supports handling, routing and coiling during repeated setup and pack-down.
The cross-linked elastomer sheath provides resistance to mechanical stress encountered during professional use.
The cable material offers resistance to oil, UV exposure and moisture within the conditions specified in the TITANEX® datasheet.
Electrical
| Field | Value |
|---|---|
| Channel count | 6 |
| Number of cable cores | 14 |
| Rated current per circuit | 16A |
| Contact termination | Crimp |
| Contact finish | Silver-plated |
| Selected conductor cross-section | 1.5 mm² |
| Selected cable type | HELUKABEL JZ-600 |
| Cable nominal voltage, U₀/U | 600/1000 V AC |
| Cable test voltage, core/core | 4000 V |
Cable and connector ratings describe their respective components. The permissible rating of the complete assembly depends on the fitted components, circuit loading and installation conditions.
Environment
| Field | Value |
|---|---|
| Cable operating temperature, flexible use | −15°C to +80°C |
| Cable operating temperature, fixed installation | −40°C to +80°C |
| Cable minimum bending radius, flexible use | 7.5 × cable outer diameter |
| Cable minimum bending radius, fixed installation | 4 × cable outer diameter |
| Cable UV resistance | UV-resistant |
| Cable weather resistance | Weather-resistant |
| Cable oil resistance | Largely oil-resistant; subject to manufacturer’s conditions |
| Cable outdoor application | Fixed installation |
| Connector protection rating | IP65, subject to the connector manufacturer’s assembly and mating conditions |
These properties describe HELUKABEL JZ-600 cable. Flexible use requires free movement without tensile stress or forced guidance. The datasheet specifies outdoor use for fixed installation.
Accessories
Protect connector interfaces and support cable handling with accessories selected for the HAN 16E housing and cable size.
Protect the connector interface from dust and mechanical damage during storage and transport. Choose the cap that matches the fitted housing and connector end.
Help guide cables through conduits, structures and cable routes while reducing the need to pull directly on the connector. Select a grip suitable for the cable diameter and installation task.
Help distribute pulling and bending loads away from the connector interface. Select the size to suit the cable diameter and connector arrangement.
Documentation
PDF · EN
PDF · EN
PDF · EN
Product information on this webpage is provided for guidance and may contain errors or omissions. Always refer to the latest downloadable product documentation for the definitive technical specifications and instructions.
Related products
Explore related PDUs, cable assemblies and handling accessories for your setup.
Modular PDUs · TTMM Series
Rated current per channel
16A
IP rating
IP65
Input
Protection
Outputs
Protection
Modular PDUs · TTMM Series
Rated current per channel
16A
IP rating
IP65
Input
Protection
Outputs
Protection
Flightcase PDUs · TTPF Series
Rated current
32A
IP rating
IP54
Input
Protection
Outputs
Protection
Flightcase PDUs · TTPF Series
Rated current
63A
IP rating
IP54
Input
Protection
Outputs
Protection
Cable accessories
For HAN 16E cables
Help guide cables through ducts and cable routes. Select a grip suited to the cable diameter and installation task.
Price on request
Cable accessories
For HAN 16E cables
Help distribute pulling and bending loads away from the connector entry. Select the size to suit the cable diameter.
Price on request
Custom cable assemblies
If the required length, connector combination, labelling or cable construction is not listed, send us your requirements. Our team will help define the right cable assembly for your application.
