TTPF32-002

Name: TTPF32-002
Brand: Tesla Tech
SKU: TTPF32-002

32A Flightcase PDU · CEE 32A 5P input · 3× HAN® 16E · 3× auxiliary

32AIP54

Input

Protection

CEE 32A 5PMCB

Outputs

Protection

3× HAN® 16E18× RCBO

3× auxiliary3× RCBO

Auxiliary connectorF2

Connector colourC

Product ID

TTPF32-002-F2-C

Price on request

Built for HAN® 16E distribution

One input. Eighteen HAN® 16E circuits. Three auxiliary outputs.

HAN® 16E multicore connections carry multiple power circuits through a single robust connector and are widely used for lighting, LED systems and modular temporary power setups.

TTPF32-002 combines three HAN® 16E outputs with individual RCBO protection across all 18 circuits, plus three configurable auxiliary outputs with dedicated RCBO protection. Everything is integrated into a durable IP54 flightcase, built for repeated deployment in professional indoor and outdoor productions.

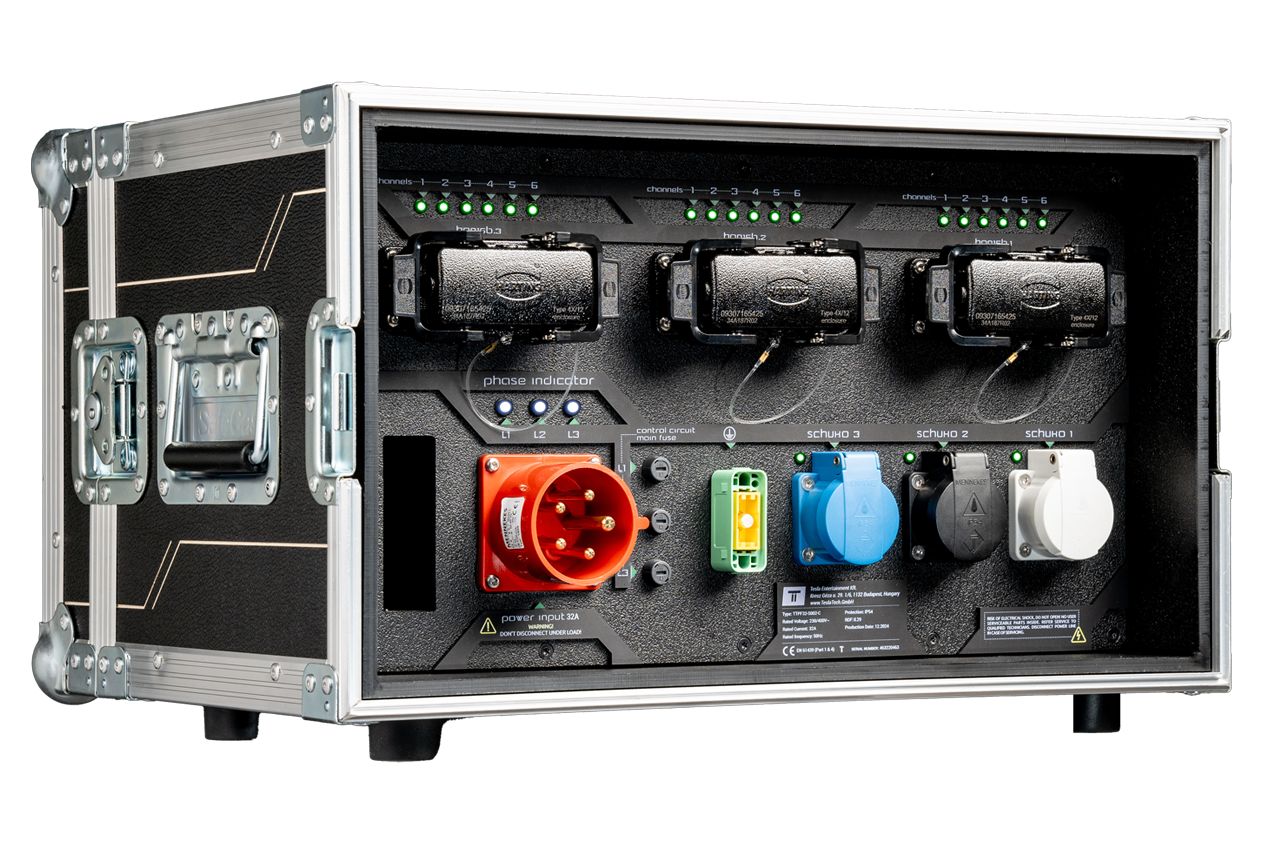

Rear panel of TTPF32-002 with three HAN® 16E outputs, channel LEDs and three Schuko outputs

HAN® 16E outputs: 3×HAN® 16E outputs
Individually protected circuits: 18Individually protected circuits
Configurable auxiliary outputs: 3×Configurable auxiliary outputs
Indoor & outdoor productions: IP54Indoor & outdoor productions

Technical information

Full product specifications

Explore complete product data, features, functionality, mechanical and electrical design, environmental ratings, compliance, configuration options and documentation.

Product data

Technical specifications

Input and input protection specifications for TTPF32-002
Input	Input Protections
1× CEE 32A 400 V 5P (Mennekes)	1× Main MCB C32A 4P Icn: 10 kA (Siemens)

Output and output protection specifications for TTPF32-002
Outputs	Output Protections
3× HAN® 16E 16A 230 V 16P with IP65 protective cap (Harting)	18× RCBO C16A 30 mA 1P A-type (Siemens)
3× Auxiliary outputs, 230 V 3P, with selectable connector type	3× RCBO C16A 30 mA* 1P A-type (Siemens)
1× HAN® GND grounding connector (Harting)	Not applicable

*For selected auxiliary connectors, the rated current of the RCBO varies. The J1 version is fitted with an RCBO C10A 30 mA 1P A-type; the G1 and B1 versions are fitted with an RCBO C13A 30 mA 1P A-type.

Features

Key product features

Functionality

Operation & monitoring

Indicator LEDs

3× phase-presence indicator white LEDs for L1, L2 and L3

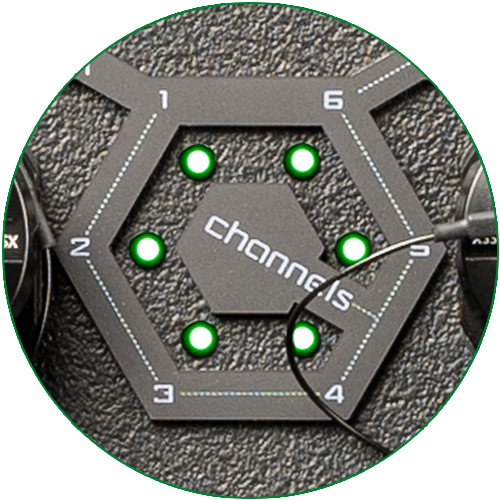

18× RCBO “I-ON” state green LEDs for HAN® 16E output channels
3× RCBO “I-ON” state green LEDs for auxiliary connectors

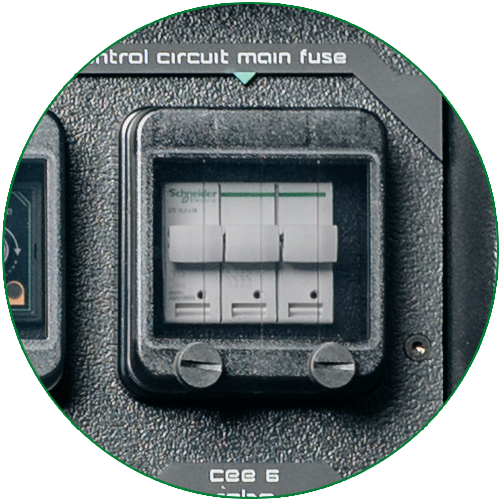

The three control-circuit main fuses next to the power input connector

Independent Fuses

All phase-presence indicator LEDs are powered through an independently fused circuit. In the event of an MCB trip, the LEDs remain operational to support fault diagnostics, including phase-loss detection.

Integrated Work Lights

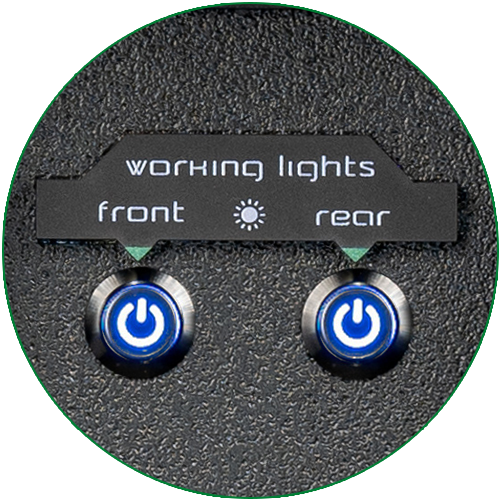

Equipped with one front and one rear working light, controlled by front-panel pushbuttons. These lights improve safety and visibility during operation, setup or maintenance in low-light environments such as backstage or industrial sites.

Design

Mechanical & electrical design

Mechanical and electrical design specifications for TTPF32-002
Design Item	Specification
Ingress Protection	IP54-rated enclosure with transparent hinged covers for the MCB and RCBOs, providing dust protection and resistance to water splashes in semi-outdoor or protected outdoor environments.
Enclosure Material	The internal PDU is constructed from high-density polyethylene with a structured finish and is securely integrated into a custom-built flightcase. The HDPE is UV-stabilised and water-resistant, providing mechanical strength, long-term durability and resistance to environmental stress.
Flightcase Construction	7 mm high-grade birch plywood finished with a durable black textured phenolic resin laminate.
Integrated Hardware	Two robust handles, four heavy-duty rubber feet, four lid dishes for stable vertical stacking and one integrated plate for labelling or documentation storage.
Overall Dimensions	340 x 560 x 500 mm, Height x Width x Depth
Labelling	All connectors and protective devices are identified with UV-printed markings resistant to UV exposure and solvent-based cleaning agents.
Connector Installation	Quick Connector Replacement system. Connectors are mounted with four stainless steel screws and sufficient internal cable slack to allow replacement without dismantling the complete enclosure.
Internal Conductor Cross-Sections	32A circuits: 6 mm² Cu. 16A circuits: 2.5 mm² Cu.
Internal Cabling	Helukabel flexible conductors, H07V-K or equivalent.
Terminal Blocks	Phoenix Contact or Ouneva spring-cage or screw-type terminals, selected according to application and load class.

Electrical

Electrical specifications

Electrical specifications for TTPF32-002
Specification	Value
Rated Voltage	400 V AC, 3P+N+PE
Rated Current	32A
Frequency	50/60 Hz
Maximum Continuous Load	22 kVA, 22 kW at cos φ = 1
Rated Diversity Factor	0.28
Rated Conditional Short-Circuit Current	10 kA, in accordance with EN 60898
Protection Class	Class I, protective earth

Maximum continuous load is specified at an ambient air temperature of 30 °C.

Environment

Environmental ratings

Environmental ratings for TTPF32-002
Rating	Value
Operating Temperature	−25 °C to +40 °C, with the average ambient temperature over a 24-hour period not exceeding +35 °C (in accordance with IEC/EN 61439 recommendations).
Storage Temperature	0 °C to +40 °C
Relative Humidity	Maximum 100% from −25 °C to +27 °C, decreasing to 60% at +35 °C and 46% at +40 °C, non-condensing, in accordance with IEC/EN 61439 recommendations
Maximum Installation Altitude	2,000 m above sea level

Compliance

Compliance & standards

Certifications and standards for TTPF32-002
Category	Details
CE Compliance	Components and final assemblies are CE marked and compliant with the applicable EU directives, including the Low Voltage Directive 2014/35/EU and EMC Directive 2014/30/EU.
Standards Compliance	EN 61439-1: Low-voltage switchgear and controlgear assemblies, General rules. EN 61439-4: Assemblies for construction sites.
Manufacturer Information	Tesla Entertainment Kft., H-1151 Budapest, Károlyi Sándor út 158., Hungary. EU VAT ID: HU26587255.
Country of Origin	Hungary. All units are assembled and tested at the Tesla Tech facility in Budapest.

Configuration

Auxiliary connector options

Select the right auxiliary connection. All auxiliary outputs use the selected connector type.

Auxiliary output configuration options for TTPF32-002
Code	Type	Rated Current	IP Code	Manufacturer
F1	German / Austrian (Type F)	16A	IP54	Mennekes
F2	German / Austrian with gasket (Type F)	16A	IP54	Mennekes
E1	French / Belgian (Type E)	16A	IP44	Mennekes
G1	British (Type G)	13A	IP44	ABL
P1	powerCON TRUE1 with sealing self-closing cap	16A	IP65	Neutrik
J1	Swiss T13 (Type J)	10A	IP54	PCE
J2	Swiss T23 (Type J)	16A	IP54	PCE
B1	USA / Canada (Type B)	15A	IP44	ABL
K1	Danish (Type K)	16A	IP44	PCE
CE	CEE 6h	16A	IP54	Mennekes

The stated IP rating applies when all enclosure lids and covers are fully closed. When connectors are mated, the overall ingress protection level may depend on the IP rating of the connected plugs.

Documentation

Downloads

Technical Specifications

PDF · EN

Download

User Manual

PDF · EN

Single-Line Diagram

PDF · EN

EU Declaration of Conformity

PDF · EN

Product information on this webpage is provided for guidance and may contain errors or omissions. Always refer to the latest downloadable product documentation for the definitive technical specifications and instructions.
