TTM32-002

Name: TTM32-002
Brand: Tesla Tech
SKU: TTM32-002

32A Rack-Mounted PDU · 6U 19-inch · CEE 32A 5P input · 3× HAN® 16E · 3× auxiliary

32AIP406U

Input

Protection

CEE 32A 5PMCB

Outputs

Protection

3× HAN® 16E18× RCBO

3× auxiliary3× RCBO

Auxiliary connectorF2

Connector colourC

Product ID

TTM32-002-F2-C

Price on request

Built for rack-mounted multicore distribution

Three HAN® 16E outputs. Eighteen individually protected circuits.

HAN® 16E multicore connections carry six power circuits through a single robust industrial connector, supporting structured distribution for lighting, LED and professional production systems.

TTM32-002 combines three HAN® 16E outputs with individual RCBO protection for all 18 circuits and three configurable auxiliary outputs in a compact 6U 19-inch aluminium enclosure.

Designed for dry, controlled indoor environments, it integrates structured power distribution directly into professional racks used in venues, studios, backstage systems and technical installations.

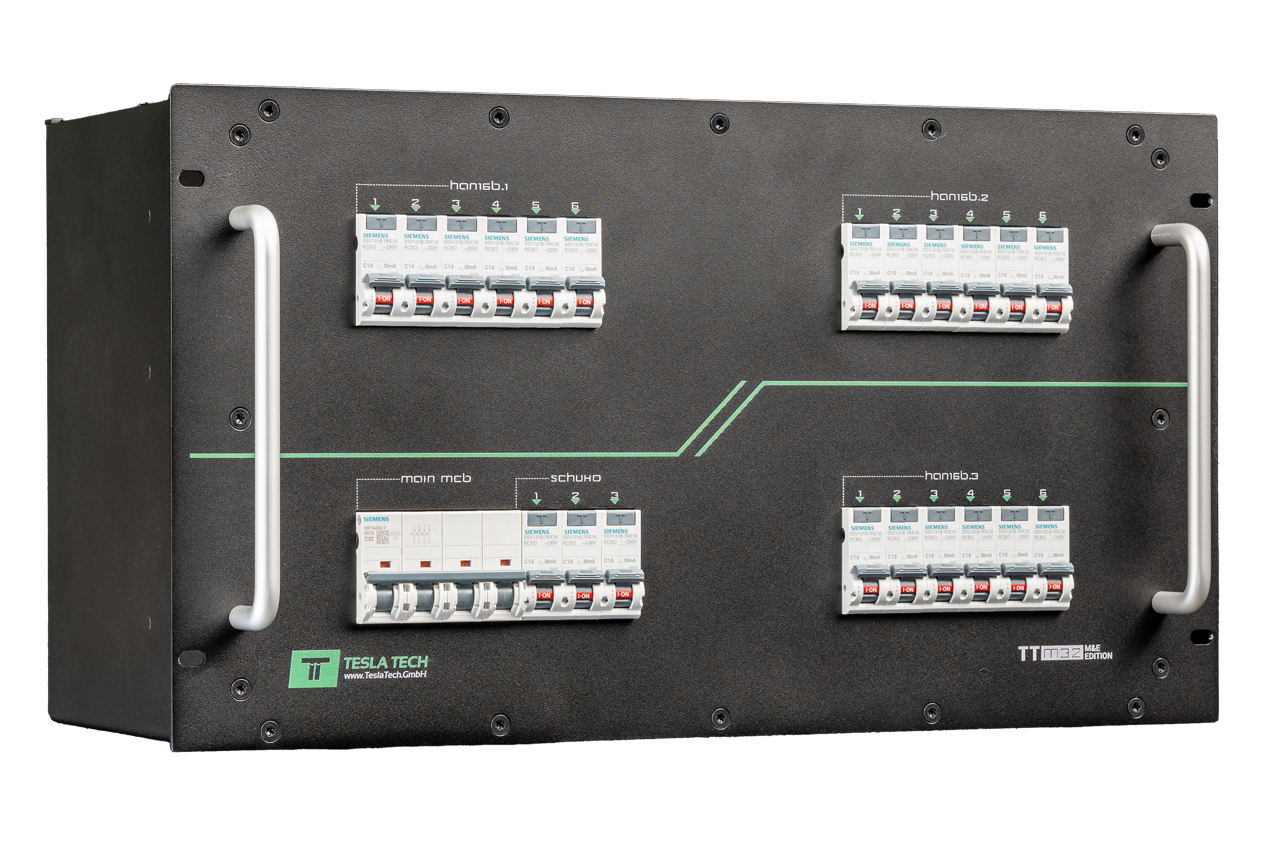

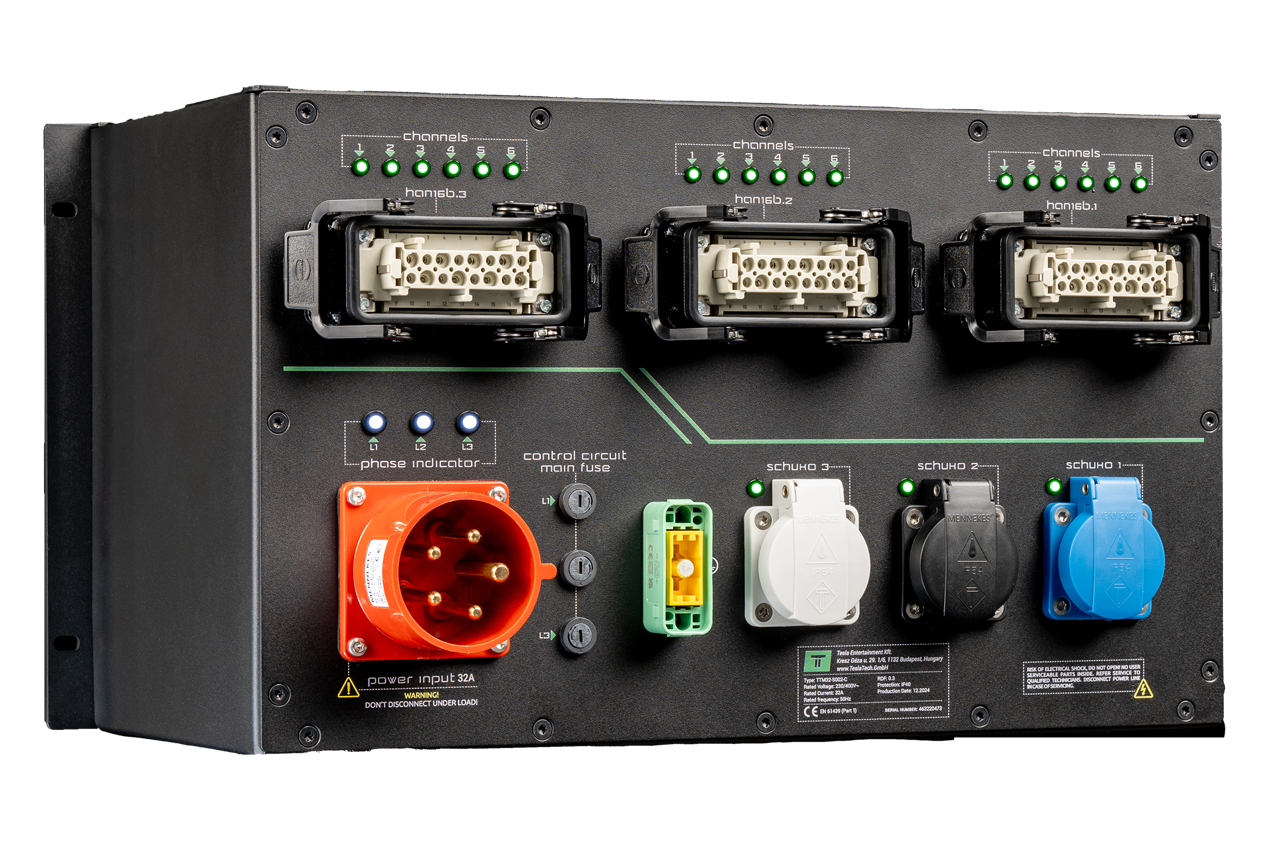

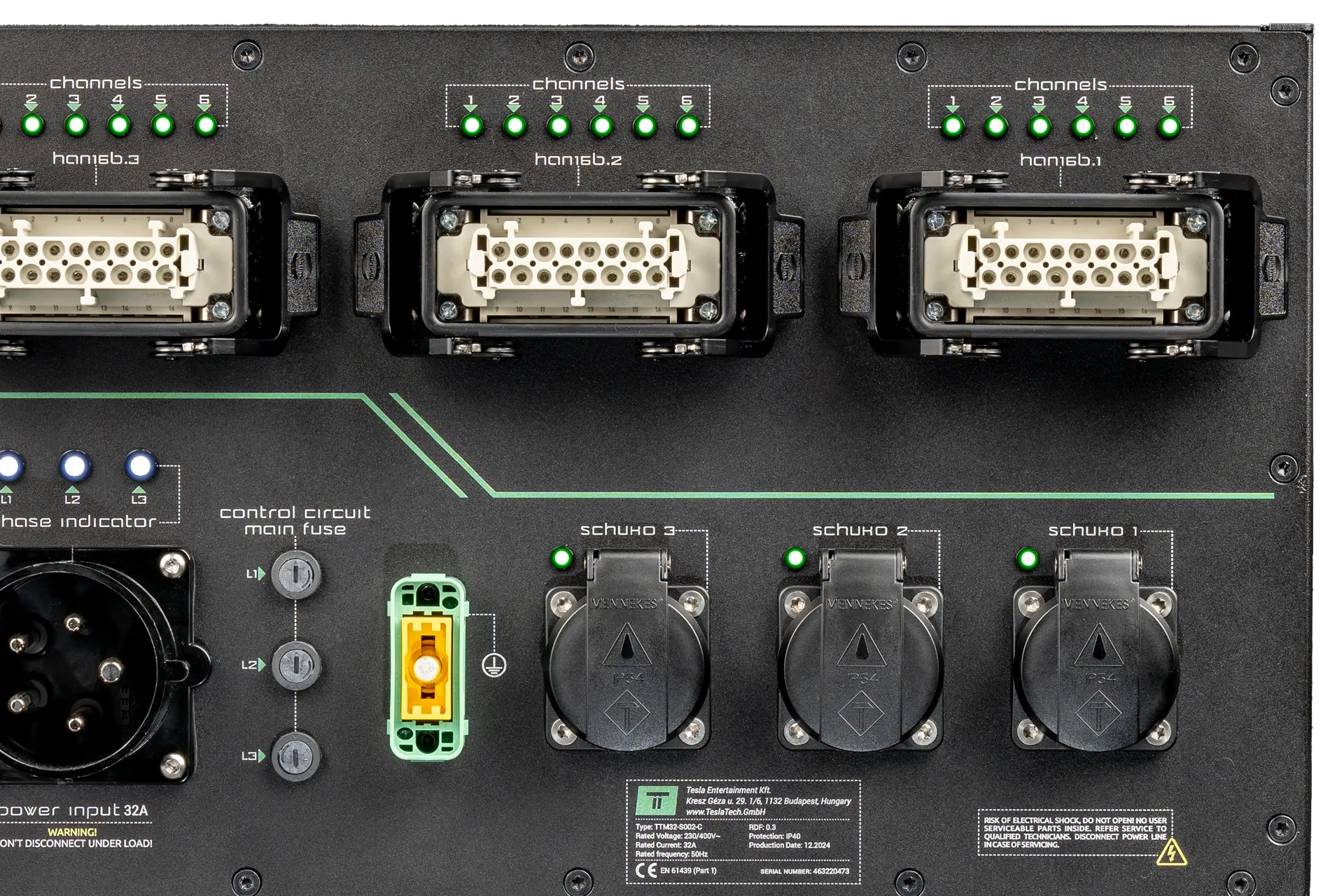

Close-up of the TTM32-002 rear panel with three HAN® 16E outputs and channel LEDs, the 32A power input and three Schuko outputs

HAN® 16E outputs: 3×HAN® 16E outputs
Individually protected circuits: 18Individually protected circuits
19-inch rack format: 6U19-inch rack format
Indoor use: IP40Indoor use

Technical information

Full product specifications

Explore complete product data, features, functionality, mechanical and electrical design, environmental ratings, compliance, configuration options and documentation.

Product data

Technical specifications

Input and input protection specifications for TTM32-002
Input	Input Protections
1× CEE 32A 400 V 5P (Mennekes)	1× Main MCB C32A 4P Icn: 10 kA (Siemens)

Output and output protection specifications for TTM32-002
Outputs	Output Protections
3× HAN® 16E 16A 230 V 16P (Harting)	18× RCBO C16A 30 mA 1P A-type (Siemens)
3× Auxiliary outputs, 230 V 3P, with selectable connector type	3× RCBO C16A* 30 mA 1P A-type (Siemens)
1× HAN® GND grounding connector (Harting)	Not applicable

*For selected auxiliary connectors, the rated current of the RCBO varies. The J1 version is fitted with an RCBO C10A 30 mA 1P A-type; the G1 and B1 versions are fitted with an RCBO C13A 30 mA 1P A-type.

Features

Key product features

Functionality

Operation & monitoring

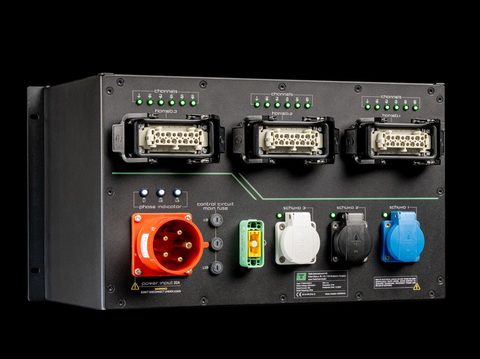

Green channel LEDs above a HAN® 16E output connector

Indicator LEDs

Clear status at a glance.

3× Phase presence indicator white LED, L1, L2 and L3
18× RCBO “I-ON” state green LED for HAN® 16E output channels
3× RCBO “I-ON” state green LED for auxiliary connectors

Three control-circuit fuses beside the power input

Independent Fuses

Diagnostic indicators remain available after a trip.

The phase-presence indicator LEDs are supplied through an independently fused circuit. If the main MCB trips, the indicators remain operational to support fault diagnostics, including phase-loss detection.

Design

Mechanical & electrical design

Mechanical and electrical design specifications for TTM32-002
Design Item	Specification
Ingress Protection	IP40. Protected against solid objects larger than 1 mm, with no protection against liquids. Intended only for dry, controlled indoor environments.
Enclosure Material	2.0 mm powder-coated aluminium sheet with a fine-textured finish, providing mechanical protection and corrosion resistance for professional indoor applications.
Overall Dimensions	270 x 485 x 285 mm, Height x Width x Depth
Rack Format	6U · 19-inch rack format
Handle Type	Fixed round-bar pull handles manufactured from aluminium alloy, suitable for manual handling and mounting support.
Labelling	All connectors and protective devices are identified with UV-printed markings resistant to UV exposure and solvent-based cleaning agents.
Connector Installation	Quick Connector Replacement system. Connectors are mounted with four stainless steel screws and sufficient internal cable slack to allow replacement without dismantling the complete enclosure.
Internal Conductor Cross-Sections	32A circuits: 6 mm² Cu. 16A circuits: 2.5 mm² Cu.
Internal Cabling	Helukabel flexible conductors, H07V-K or equivalent.
Terminal Blocks	Phoenix Contact or Ouneva spring-cage or screw-type terminals, selected according to application and load class.

Electrical

Electrical specifications

Electrical specifications for TTM32-002
Specification	Value
Rated Voltage	400 V AC, 3P+N+PE
Rated Current	32A
Frequency	50/60 Hz
Maximum Continuous Load	22 kVA, 22 kW at cos φ = 1
Rated Diversity Factor	0.28
Rated Conditional Short-Circuit Current	10 kA according to EN 60898
Protection Class	Class I, protective earth

Maximum continuous load is specified at an ambient air temperature of 30 °C.

Environment

Environmental ratings

Environmental ratings for TTM32-002
Rating	Value
Operating Temperature	−5 °C to +40 °C, with the average ambient temperature over a 24-hour period not exceeding +35 °C (in accordance with IEC/EN 61439 recommendations).
Storage Temperature	0 °C to +40 °C
Relative Humidity	Maximum 95% from −5 °C to +30 °C, decreasing to 70% at +35 °C and 57% at +40 °C, non-condensing, in accordance with IEC/EN 61439 recommendations
Maximum Installation Altitude	2,000 m above sea level

Compliance

Compliance & standards

Certifications and standards for TTM32-002
Category	Details
CE Compliance	Components and final assemblies are CE marked and compliant with the applicable EU directives, including the Low Voltage Directive 2014/35/EU and EMC Directive 2014/30/EU.
Standards Compliance	EN 61439-1: Low-voltage switchgear and controlgear assemblies, General rules.
Manufacturer Information	Tesla Entertainment Kft., H-1151 Budapest, Károlyi Sándor út 158., Hungary. EU VAT ID: HU26587255.
Country of Origin	Hungary. All units are assembled and tested at the Tesla Tech facility in Budapest.

Configuration

Auxiliary connector options

Select the right auxiliary connection. All auxiliary outputs use the selected connector type.

Auxiliary output configuration options for TTM32-002
Code	Type	Rated Current	IP Code	Manufacturer
F1	German / Austrian (Type F)	16A	IP54	Mennekes
F2	German / Austrian with gasket (Type F)	16A	IP54	Mennekes
E1	French / Belgian (Type E)	16A	IP44	Mennekes
G1	British (Type G)	13A	IP44	ABL
P1	powerCON® TRUE1 with rubber sealing cap	16A	IP65	Neutrik
J1	Swiss T13 (Type J)	10A	IP54	PCE
J2	Swiss T23 (Type J)	16A	IP54	PCE
B1	USA / Canada (Type B)	15A	IP44	ABL
K1	Danish (Type K)	16A	IP44	PCE
CE	CEE 6h	16A	IP54	Mennekes

The stated connector IP rating applies when all relevant lids and covers are fully closed. When connectors are mated, the achieved ingress protection depends on the IP rating of the connected plugs. The complete TTM enclosure remains rated IP40 and is intended for dry indoor use only.

Documentation

Downloads

Technical Specifications

PDF · EN

Download

User Manual

PDF · EN

Single-Line Diagram

PDF · EN

EU Declaration of Conformity

PDF · EN

Product information on this webpage is provided for guidance and may contain errors or omissions. Always refer to the latest downloadable product documentation for the definitive technical specifications and instructions.
