TTPF32-001

Name: TTPF32-001
Brand: Tesla Tech
SKU: TTPF32-001

32A Flightcase PDU · CEE 32A 5P input · 3× Socapex, 3× auxiliary

32AIP54

Input

Protection

CEE 32A 5PMCB

Outputs

Protection

3× Socapex18× RCBO

3× auxiliary3× RCBO

Auxiliary connectorF2

Connector colourC

Product ID

TTPF32-001-F2-C

Price on request

Built for lighting distribution

One input. Eighteen individually protected circuits.

Socapex multicore connections carry six power circuits through a single cable and are widely used for stage lighting, LED systems and temporary production setups.

TTPF32-001 combines three Socapex outputs with individual RCBO protection for all 18 circuits in a durable IP54 flightcase, built for repeated deployment in professional indoor and outdoor productions.

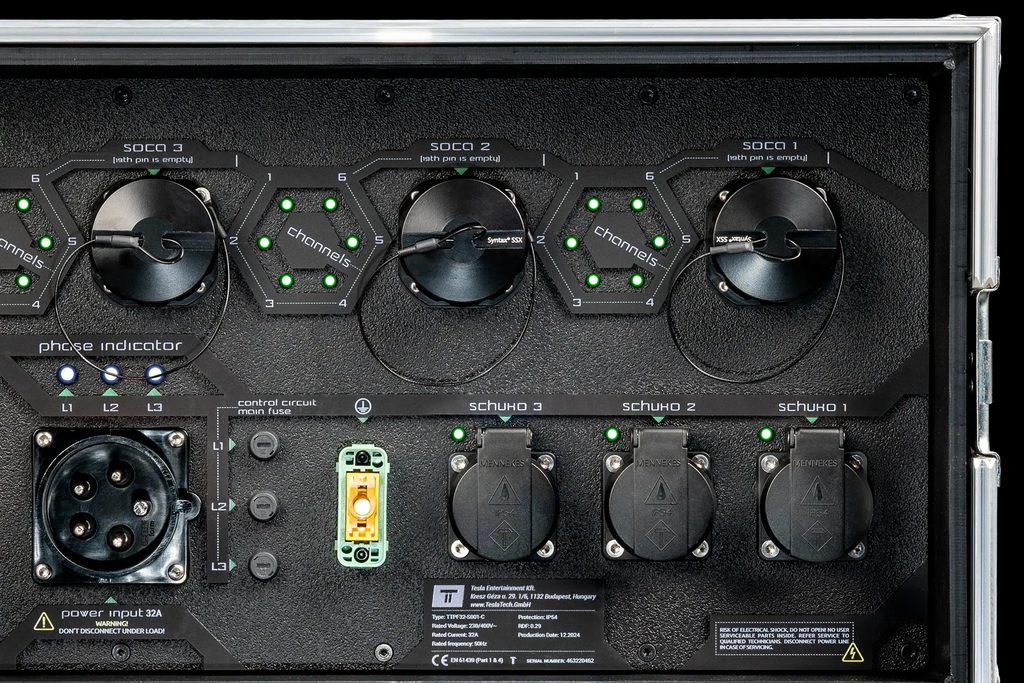

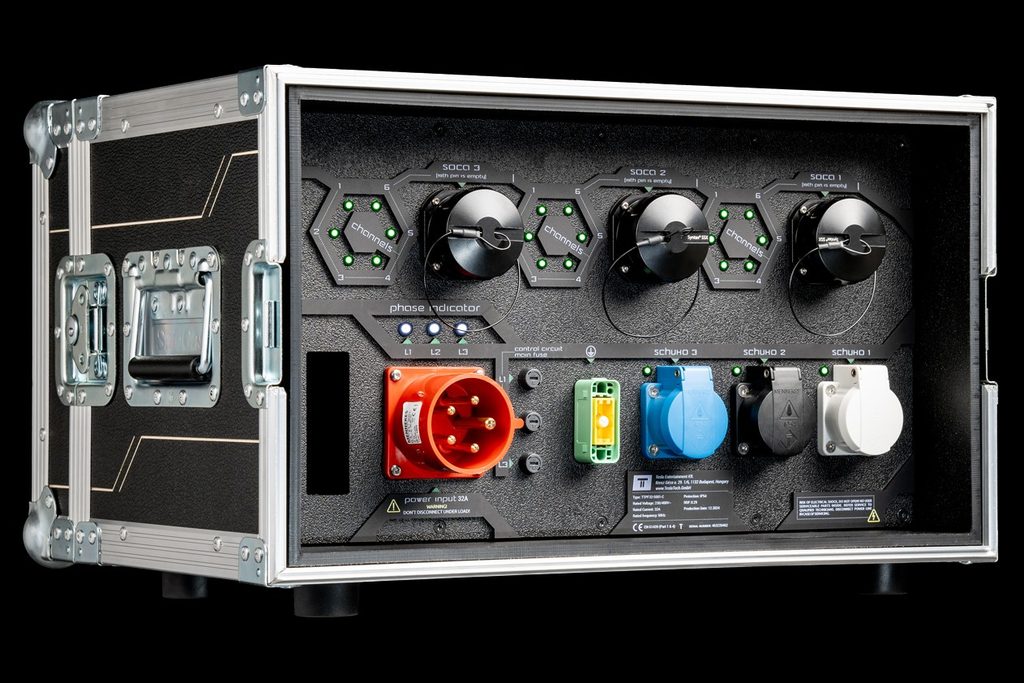

Rear panel of the TTPF32-001 with three Socapex outputs, channel LEDs, phase indicator, 32A power input and three Schuko outputs

Socapex outputs: 3×Socapex outputs
Individually protected circuits: 18Individually protected circuits
Indoor & outdoor productions: IP54Indoor & outdoor productions

Technical information

Full product specifications

Explore complete product data, features, functionality, mechanical and electrical design, environmental ratings, compliance, configuration options and documentation.

Product data

Technical specifications

Input and input protection specifications for TTPF32-001
Input	Input Protections
1× CEE 32A 400 V 5P (Mennekes)	1× Main MCB C32A 4P Icn: 10 kA (Siemens)

Output and output protection specifications for TTPF32-001
Outputs	Output Protections
3× Syntax® SSX 16A 230V 19P with IP67 protective cap (Valentini)	18× RCBO C16A 30 mA 1P A-type (Siemens)
3× Auxiliary outputs, 230 V 3P, with selectable connector type	3× RCBO C16A* 30 mA 1P A-type (Siemens)
1× HAN® GND grounding connector (Harting)	Not applicable

*For selected auxiliary connectors, the rated current of the RCBO varies. The J1 version is fitted with an RCBO C10A 30 mA 1P A-type; the G1 and B1 versions are fitted with an RCBO C13A 30 mA 1P A-type.

Features

Key product features

Functionality

Operation & monitoring

Six LED indicators beside the upper-left Socapex connector

Indicator LEDs

Clear status at a glance.

Clear status indication helps crews understand the condition of the incoming supply and protected output circuits without opening the enclosure.

3× phase-presence indicator white LEDs for L1, L2 and L3
18× RCBO “I-ON” state green LEDs for Socapex output circuits
3× RCBO “I-ON” state green LEDs for auxiliary connectors

Three indicator fuses between the input and grounding connectors

Independent Fuses

Diagnostics remain available after a trip.

All phase-presence indicator LEDs are supplied through an independently fused circuit. If the main MCB trips, the indicators remain operational to support fault identification, including phase-loss detection.

Integrated Work Lights

Built for low-light working environments.

One front and one rear working light, controlled through front-panel pushbuttons, improve visibility during setup, operation and maintenance backstage or on site.

Design

Mechanical & electrical design

Mechanical and electrical design specifications for TTPF32-001
Design Item	Specification
Ingress Protection	IP54-rated enclosure with transparent hinged covers for the MCB and RCBOs, providing dust protection and resistance to water splashes in semi-outdoor or protected outdoor environments.
Enclosure Material	The internal PDU is constructed from high-density polyethylene with a structured finish and is securely integrated into a custom-built flightcase. The HDPE is UV-stabilised and water-resistant, providing mechanical strength, long-term durability and resistance to environmental stress.

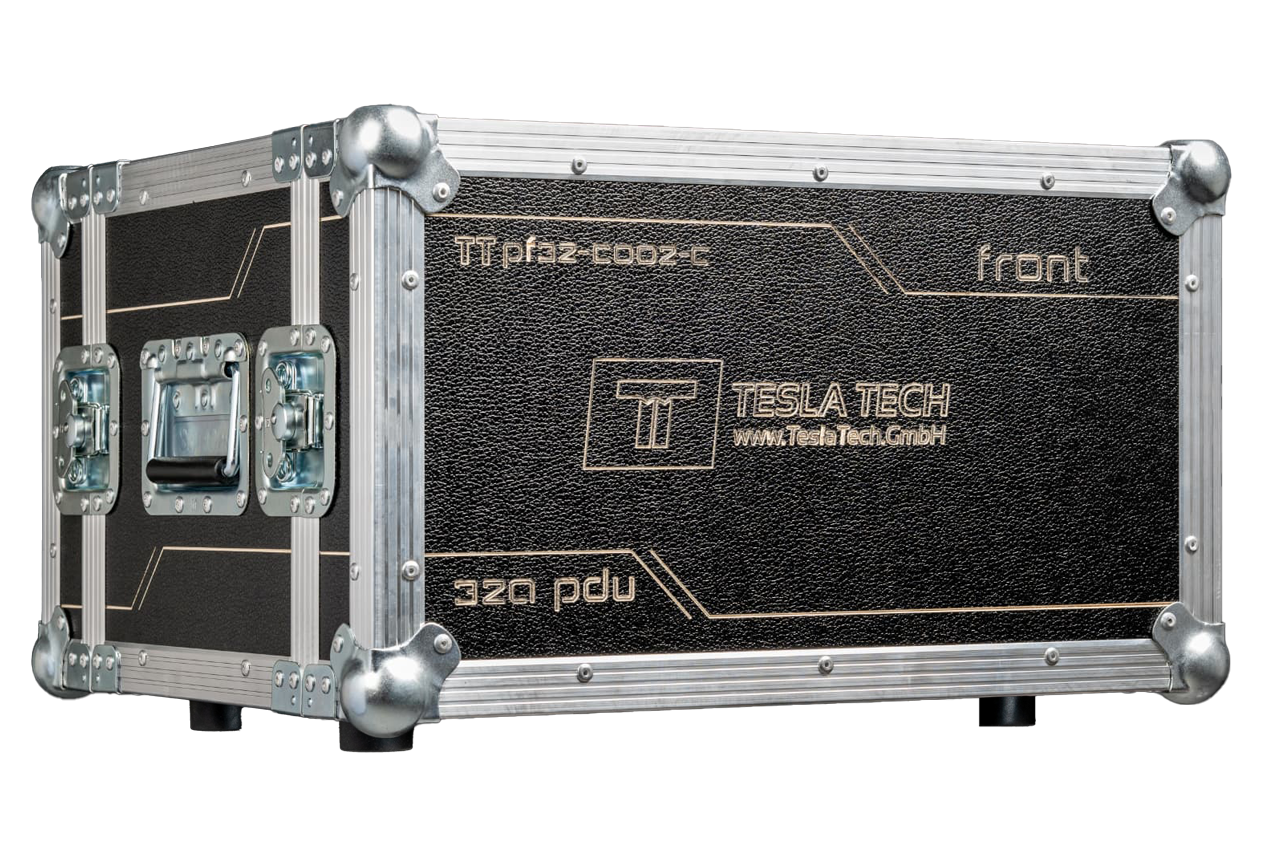

Flightcase Construction	7 mm high-grade birch plywood finished with a durable black textured phenolic resin laminate.
Integrated Hardware	Two robust handles, four heavy-duty rubber feet, four lid dishes for stable vertical stacking and one integrated plate for labelling or documentation storage.
Overall Dimensions	340 x 560 x 500 mm, Height x Width x Depth
Labelling	All connectors and protective devices are identified with UV-printed markings resistant to UV exposure and solvent-based cleaning agents.
Connector Installation	Quick Connector Replacement system. Connectors are mounted with four stainless steel screws and sufficient internal cable slack to allow replacement without dismantling the complete enclosure.
Internal Conductor Cross-Sections	32A circuits: 6 mm² Cu. 16A circuits: 2.5 mm² Cu.
Internal Cabling	Helukabel flexible conductors, H07V-K or equivalent.
Terminal Blocks	Phoenix Contact or Ouneva spring-cage or screw-type terminals, selected according to application and load class.

Electrical

Electrical specifications

Electrical specifications for TTPF32-001
Specification	Value
Rated Voltage	400 V AC, 3P+N+PE
Rated Current	32A
Frequency	50/60 Hz
Maximum Continuous Load	22 kVA, 22 kW at cos φ = 1
Rated Diversity Factor	0.28
Rated Conditional Short-Circuit Current	10 kA, in accordance with EN 60898
Protection Class	Class I, protective earth

Maximum continuous load is specified at an ambient air temperature of 30 °C.

Environment

Environmental ratings

Environmental ratings for TTPF32-001
Rating	Value
Operating Temperature	−25 °C to +40 °C, with the average ambient temperature over a 24-hour period not exceeding +35 °C (in accordance with IEC/EN 61439 recommendations).
Storage Temperature	0 °C to +40 °C
Relative Humidity	Maximum 100% from −25 °C to +27 °C, decreasing to 60% at +35 °C and 46% at +40 °C, non-condensing, in accordance with IEC/EN 61439 recommendations
Maximum Installation Altitude	2,000 m above sea level

Compliance

Compliance & standards

Certifications and standards for TTPF32-001
Category	Details
CE Compliance	Components and final assemblies are CE marked and compliant with the applicable EU directives, including the Low Voltage Directive 2014/35/EU and EMC Directive 2014/30/EU.
Standards Compliance	EN 61439-1: Low-voltage switchgear and controlgear assemblies, General rules. EN 61439-4: Assemblies for construction sites.
Manufacturer Information	Tesla Entertainment Kft., H-1151 Budapest, Károlyi Sándor út 158., Hungary. EU VAT ID: HU26587255.
Country of Origin	Hungary. All units are assembled and tested at the Tesla Tech facility in Budapest.

Configuration

Auxiliary connector options

Select the right auxiliary connection. All auxiliary outputs use the selected connector type.

Auxiliary output configuration options for TTPF32-001
Code	Type	Rated Current	IP Code	Manufacturer
F1	German / Austrian (Type F)	16A	IP54	Mennekes
F2	German / Austrian with gasket (Type F)	16A	IP54	Mennekes
E1	French / Belgian (Type E)	16A	IP44	Mennekes
G1	British (Type G)	13A	IP44	ABL
P1	powerCON TRUE1 with sealing self-closing cap	16A	IP65	Neutrik
J1	Swiss T13 (Type J)	10A	IP54	PCE
J2	Swiss T23 (Type J)	16A	IP54	PCE
B1	USA / Canada (Type B)	15A	IP44	ABL
K1	Danish (Type K)	16A	IP44	PCE
CE	CEE 6h	16A	IP54	Mennekes

The stated IP rating applies when all enclosure lids and covers are fully closed. When connectors are mated, the overall ingress protection level may depend on the IP rating of the connected plugs.
