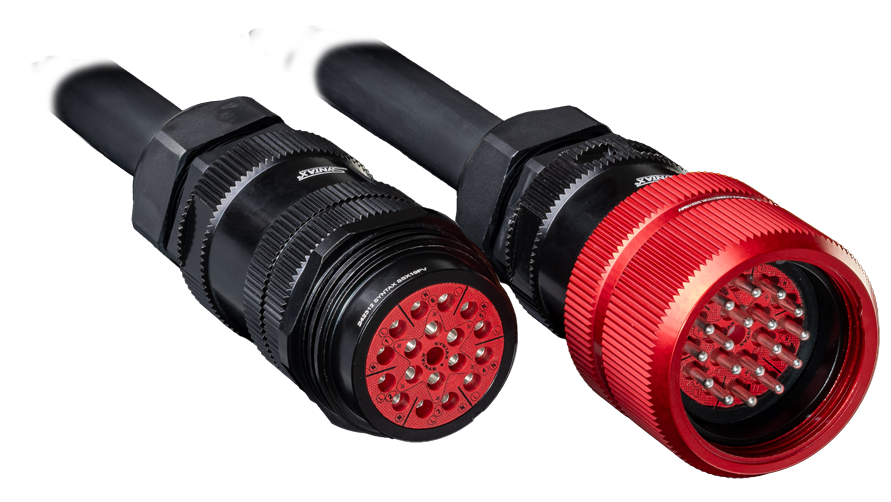

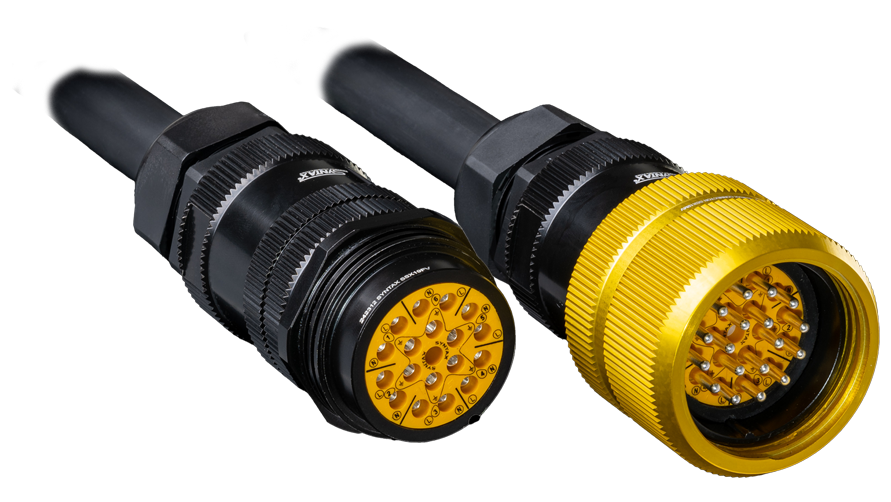

SOCA

The connector protection rating requires correct assembly, a cable gland matched to the cable diameter, and a properly mated compatible connector.

• Shrink tubes for self-labelling

  Each cable assembly includes two 10 cm transparent, unshrunk tubes for your own identification labels.

• Cable length identification

  The cable length is marked at both ends for quick identification during setup and pack-down.

• Lashing cable strap

  A cable strap is included with assemblies 5 m and longer for convenient storage, transport and handling.

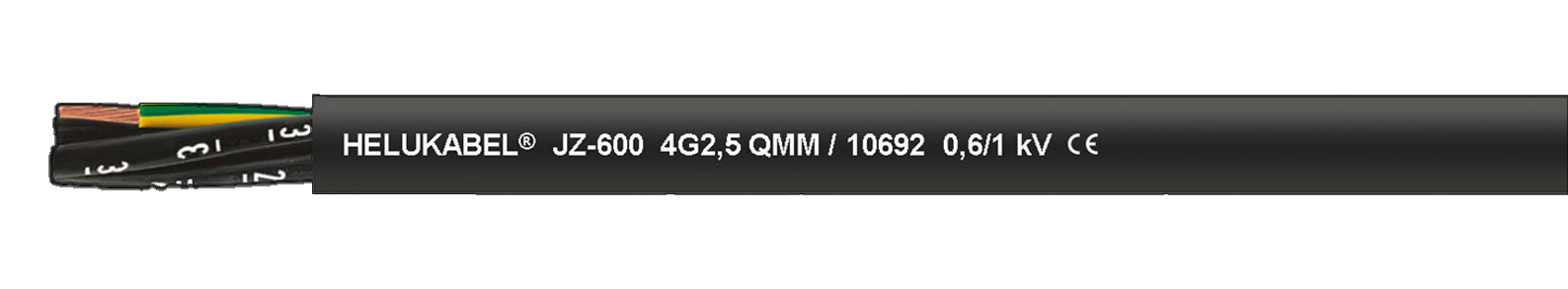

Built with HELUKABEL JZ-600.

A multicore PVC control and connection cable with finely stranded copper conductors and numbered cores.

Built with TITANEX® H07RN-F.

TITANEX® H07RN-F combines flexibility for handling and coiling with a durable elastomer sheath. These Socapex assemblies use multicore cable with a conductor cross-section of 1.5 or 2.5 mm².

Flexible handling

Flexible TITANEX® H07RN-F cable supports handling, routing and coiling during repeated setup and pack-down.

Mechanical durability

The cross-linked elastomer sheath provides resistance to mechanical stress encountered during professional use.

Resistance to the elements

The cable material offers resistance to oil, UV exposure and moisture within the conditions specified in the TITANEX® datasheet.

Cable and connector ratings describe their respective components. The permissible rating of the complete assembly depends on the fitted components, circuit loading and installation conditions.

These properties describe HELUKABEL JZ-600 cable. Flexible use requires free movement without tensile stress or forced guidance. The datasheet specifies outdoor use for fixed installation.

Connector ratings do not override the cable’s operating limits. IP67 applies to correctly assembled and mated compatible connectors; it does not imply that the complete cable assembly is suitable for immersion.

•

  Protective caps

  Protect the connector interfaces during storage and transport. Select the matching male or female cap; compatible Syntax® IP67 caps provide protection for unmated connectors when correctly fitted.

•

  Pulling grips

  Guide cables through ducts and cable routes while reducing the need to pull directly on the connector. Select a grip suited to the cable diameter and installation task.

•

  Strain reliefs

  Help distribute pulling and bending loads away from the connector entry. Select the appropriate size for the cable diameter and connector arrangement.

•

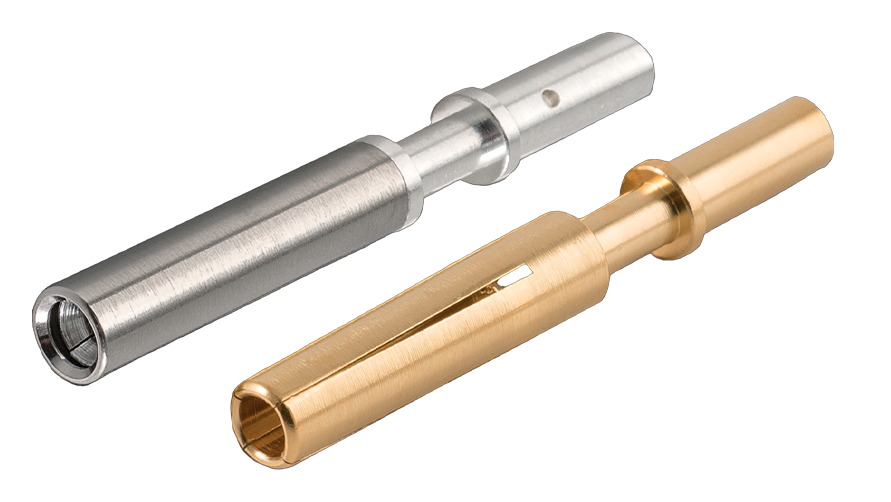

  Contact options

  Silver-plated crimp contacts are standard. Armored silver and gold contact options are available on request for applications with specific mating or environmental requirements.
