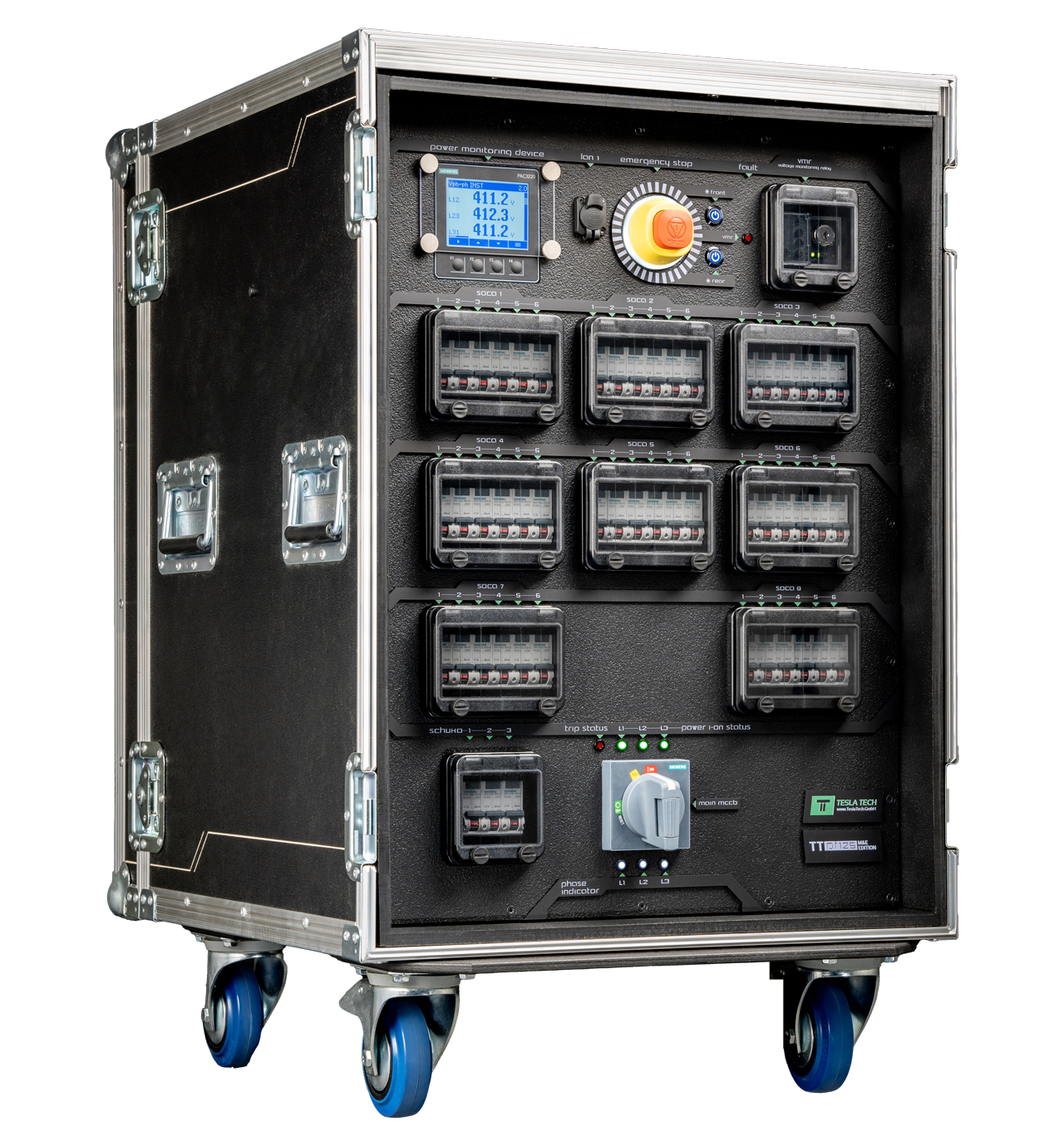

TTPF125-001

Name: TTPF125-001
Brand: Tesla Tech
SKU: TTPF125-001

125A Flightcase PDU · CEE 125A 5P input · 8× Socapex · 3× auxiliary

125AIP54

Input

Protection

CEE 125A 5PMCCB + VMR

Outputs

Protection

8× Socapex48× RCBO

3× auxiliary3× RCBO

Auxiliary connectorF2

Connector colourC

Product ID

TTPF125-001-F2-C

Price on request

Built for high-capacity lighting distribution

Eight Socapex outputs. Forty-eight individually protected circuits.

Socapex multicore connections carry six power circuits through a single cable and are widely used for stage lighting, LED systems and temporary production setups.

TTPF125-001 combines eight Socapex outputs with individual RCBO protection for all 48 circuits, plus three configurable auxiliary outputs, in a durable IP54 flightcase.

Integrated power and voltage monitoring, emergency shutdown and independently powered diagnostics give crews the visibility and control required for large professional productions.

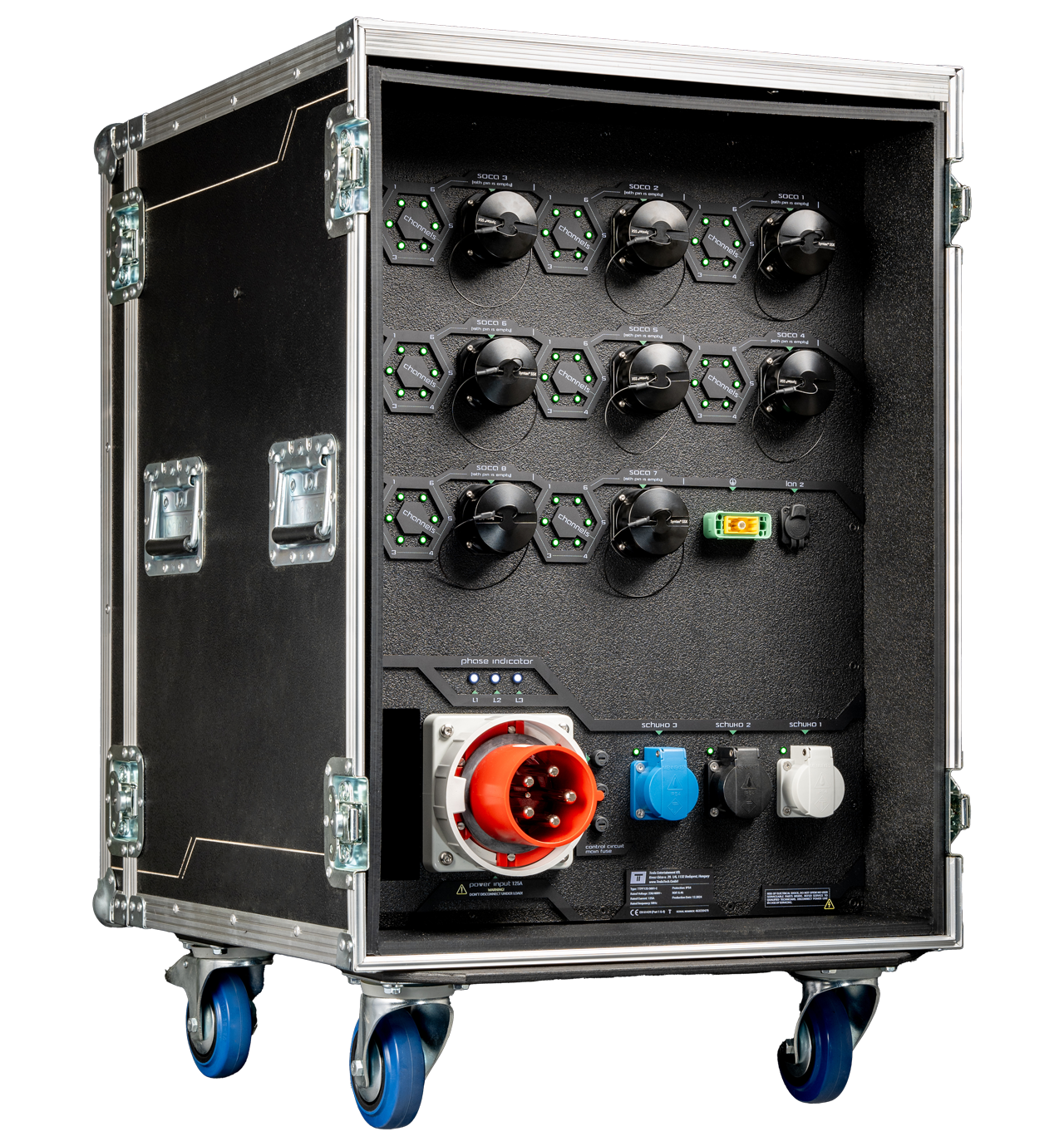

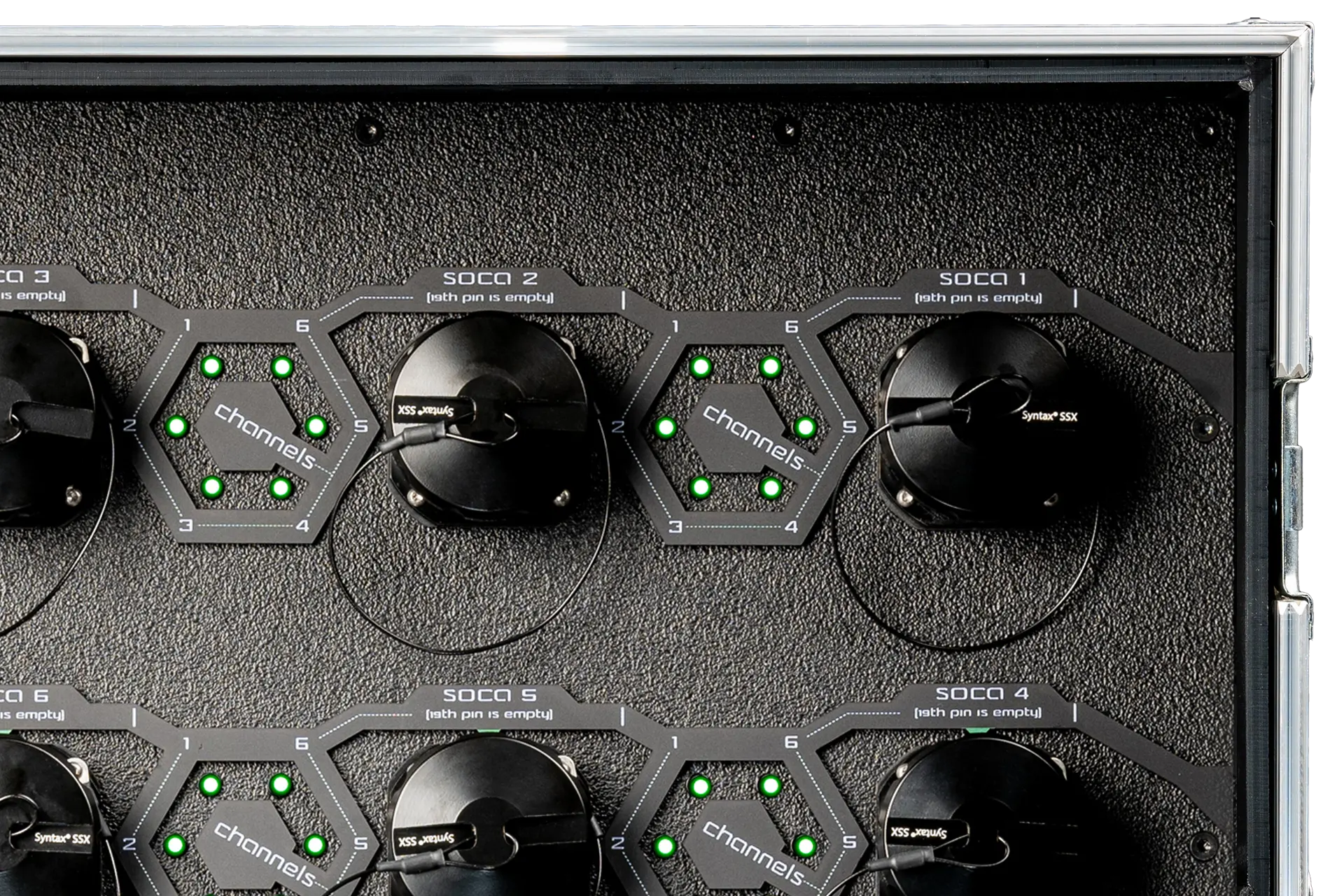

Close-up of the rear panel with Syntax® SSX outputs and their channel LEDs

Socapex outputs: 8×Socapex outputs
Individually protected circuits: 48Individually protected circuits
Configurable auxiliary outputs: 3×Configurable auxiliary outputs
Remote power monitoring: PAC3220Remote power monitoring
Indoor & outdoor productions: IP54Indoor & outdoor productions

Technical information

Full product specifications

Explore complete product data, features, functionality, mechanical and electrical design, environmental ratings, compliance, configuration options and documentation.

Product data

Technical specifications

Input and input protection specifications for TTPF125-001
Input	Input Protections
1× CEE 125A 400 V 5P (Mennekes)	1× Main MCCB 125A 4P Icn: 25 kA with extended rotary handle (Siemens)
	1× Voltage monitoring relay, VMR (Schneider Electric)

Output and output protection specifications for TTPF125-001
Outputs	Output Protections
8× Syntax® SSX 16A 230V 19P with IP67 protective cap (Valentini)	48× RCBO C16A 30 mA 1P A-type (Siemens)
3× Auxiliary outputs, 230 V 3P, with selectable connector type	3× RCBO C16A* 30 mA 1P A-type (Siemens)
1× HAN® GND grounding connector (Harting)	Not applicable

*For selected auxiliary connectors, the rated current of the RCBO varies. The J1 version is fitted with an RCBO C10A 30 mA 1P A-type; the G1 and B1 versions are fitted with an RCBO C13A 30 mA 1P A-type.

Features

Key product features

Functionality

Operation & monitoring

Siemens PAC3220 power monitoring display on the front panel

Remote Power Monitoring

Real-time power data, where you need it.

The integrated Siemens PAC3220 monitors voltage, current, power and energy consumption through three current transformers. Two panel-mounted Ethernet connections provide network access. Measurements can be viewed through the device’s built-in web interface on the same network without additional software, while Modbus TCP supports integration with compatible monitoring systems.

Voltage monitoring relay under its transparent cover

Voltage Monitoring and VMR Bypass

Continuous voltage supervision.

The phase-to-neutral voltage monitoring relay detects phase loss, missing neutral, overvoltage and undervoltage. When a critical fault is detected, it can initiate an alarm or disconnect the power supply. A secure key-operated bypass allows qualified personnel to temporarily override the VMR during controlled diagnostic or maintenance procedures.

Emergency Stop and Shunt Trip

Immediate shutdown when it matters.

The front-mounted emergency stop can immediately disconnect all outputs through the shunt-trip release of the main MCCB. Monitoring systems, diagnostic tools and working lights remain operational through independently protected circuits, supporting rapid fault identification and intervention.

Socapex output connector with its green channel LEDs

Indicator LEDs

Clear status at a glance.

6× Phase presence indicator white LED, L1, L2 and L3
3× MCCB “ON” state green LED
1× MCCB “TRIP” state red LED
48× RCBO “I-ON” state green LED for Syntax® SSX output channels
3× RCBO “I-ON” state green LED for auxiliary connectors
1× Fault Indicator red LED triggered by the VMR

Control circuit main fuses next to the power input

Independent Fuses

Diagnostics remain available after a trip.

Power monitoring, voltage monitoring, emergency functions, working lights and their indicator LEDs are supplied through independently fused circuits. If the main MCCB trips, these systems remain active to support fault identification and maintain diagnostic visibility.

Work-light control pushbuttons beside the emergency stop

Integrated Work Lights

Built for low-light working environments.

One front and one rear working light, controlled through front-panel pushbuttons, improve visibility during setup, operation and maintenance backstage or on site.

Design

Mechanical & electrical design

Mechanical and electrical design specifications for TTPF125-001
Design Item	Specification
Ingress Protection	IP54-rated enclosure with transparent hinged covers for the MCCB, RCBOs and VMR, providing dust protection and resistance to water splashes in semi-outdoor or protected outdoor environments.
Enclosure Material	The internal PDU is constructed from high-density polyethylene with a structured finish and is securely integrated into a custom-built flightcase. The HDPE is UV-stabilised and water-resistant, providing mechanical strength, long-term durability and resistance to environmental stress.
Flightcase Construction	7 mm high-grade birch plywood finished with a durable black textured phenolic resin laminate.
Integrated Hardware	Four robust handles, four industrial-grade wheels, two of which are lockable, four lid dishes for stable vertical stacking and one integrated plate for labelling or documentation storage.
Overall Dimensions	885 x 565 x 750 mm, Height x Width x Depth
Labelling	All connectors and protective devices are identified with UV-printed markings resistant to UV exposure and solvent-based cleaning agents.
Connector Installation	Quick Connector Replacement system. Connectors are mounted with four stainless steel screws and sufficient internal cable slack to allow replacement without dismantling the complete enclosure.
Internal Conductor Cross-Sections	125A circuits: 50 mm² Cu. 16A circuits: 2.5 mm² Cu.
Internal Cabling	Helukabel flexible conductors, H07V-K or equivalent.
Terminal Blocks	Phoenix Contact or Ouneva spring-cage or screw-type terminals, selected according to application and load class.

Electrical

Electrical specifications

Electrical specifications for TTPF125-001
Specification	Value
Rated Voltage	400 V AC, 3P+N+PE
Rated Current	125A
Frequency	50/60 Hz
Maximum Continuous Load	86 kVA, 86 kW at cos φ = 1
Rated Diversity Factor	0.46
Rated Conditional Short-Circuit Current	25 kA according to EN 60898
Protection Class	Class I, protective earth

Maximum continuous load is specified at an ambient air temperature of 30 °C.

Environment

Environmental ratings

Environmental ratings for TTPF125-001
Rating	Value
Operating Temperature	−25 °C to +40 °C, with the average ambient temperature over a 24-hour period not exceeding +35 °C (in accordance with IEC/EN 61439 recommendations).
Storage Temperature	0 °C to +40 °C
Relative Humidity	Maximum 100% from −25 °C to +27 °C, decreasing to 60% at +35 °C and 46% at +40 °C, non-condensing, in accordance with IEC/EN 61439 recommendations
Maximum Installation Altitude	2,000 m above sea level

Compliance

Compliance & standards

Certifications and standards for TTPF125-001
Category	Details
CE Compliance	Components and final assemblies are CE marked and compliant with the applicable EU directives, including the Low Voltage Directive 2014/35/EU and EMC Directive 2014/30/EU.
Standards Compliance	EN 61439-1: Low-voltage switchgear and controlgear assemblies, General rules. EN 61439-4: Assemblies for construction sites.
Manufacturer Information	Tesla Entertainment Kft., H-1151 Budapest, Károlyi Sándor út 158., Hungary. EU VAT ID: HU26587255.
Country of Origin	Hungary. All units are assembled and tested at the Tesla Tech facility in Budapest.

Configuration

Auxiliary connector options

Select the right connection for your market. All auxiliary outputs use the selected connector type.

Auxiliary output configuration options for TTPF125-001
Code	Type	Rated Current	IP Code	Manufacturer
F1	German / Austrian (Type F)	16A	IP54	Mennekes
F2	German / Austrian with gasket (Type F)	16A	IP54	Mennekes
E1	French / Belgian (Type E)	16A	IP44	Mennekes
G1	British (Type G)	13A	IP44	ABL
P1	powerCON TRUE1 with sealing self-closing cap	16A	IP65	Neutrik
J1	Swiss T13 (Type J)	10A	IP54	PCE
J2	Swiss T23 (Type J)	16A	IP54	PCE
B1	USA / Canada (Type B)	15A	IP44	ABL
K1	Danish (Type K)	16A	IP44	PCE
CE	CEE 6h	16A	IP54	Mennekes

The stated IP rating applies when all enclosure lids and covers are fully closed. When connectors are mated, the overall ingress protection level depends on the IP rating of the connected plugs.

Documentation

Downloads

Technical Specifications

PDF · EN

Download

User Manual

PDF · EN

Single-Line Diagram

PDF · EN

EU Declaration of Conformity

PDF · EN

Product information on this webpage is provided for guidance and may contain errors or omissions. Always refer to the latest downloadable product documentation for the definitive technical specifications and instructions.
