TTM63-003

Name: TTM63-003
Brand: Tesla Tech
SKU: TTM63-003

63A Rack-Mounted PDU · 9U 19-inch · HAN® ECO 6B input · 3× CEE 32A · 1× CEE 16A · 6× auxiliary

63AIP409U

Input

Protection

HAN® ECO 6BMCCB + VMR

Outputs

Protection

3× CEE 32A 5P3× RCBO

1× CEE 16A 5P1× RCBO

6× auxiliary6× RCBO

Auxiliary connectorF2

Connector colourC

Product ID

TTM63-003-F2-C

Price on request

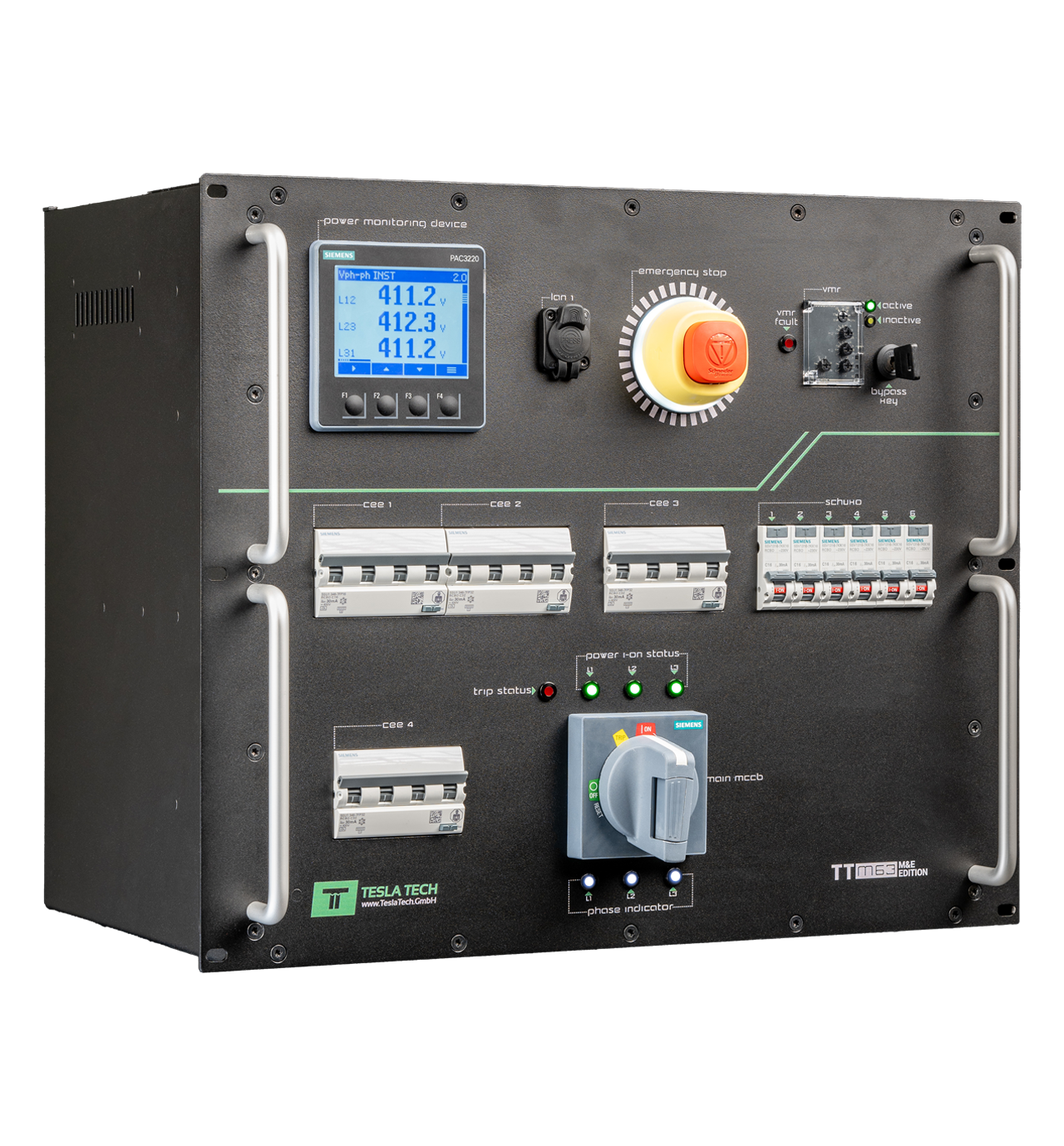

Built for rack-mounted power distribution

One 63A input. Ten individually protected outputs.

TTM63-003 distributes a 63A three-phase supply across three CEE 32A outputs, one CEE 16A output and six configurable auxiliary outputs.

Each of the ten outputs has dedicated RCBO protection, allowing the unit to supply higher-current three-phase equipment and multiple local single-phase loads from one compact distribution point.

A space-saving HAN® ECO 6B input, integrated power and voltage monitoring, emergency shutdown and independently powered diagnostics are built into a 9U 19-inch aluminium enclosure for professional indoor systems.

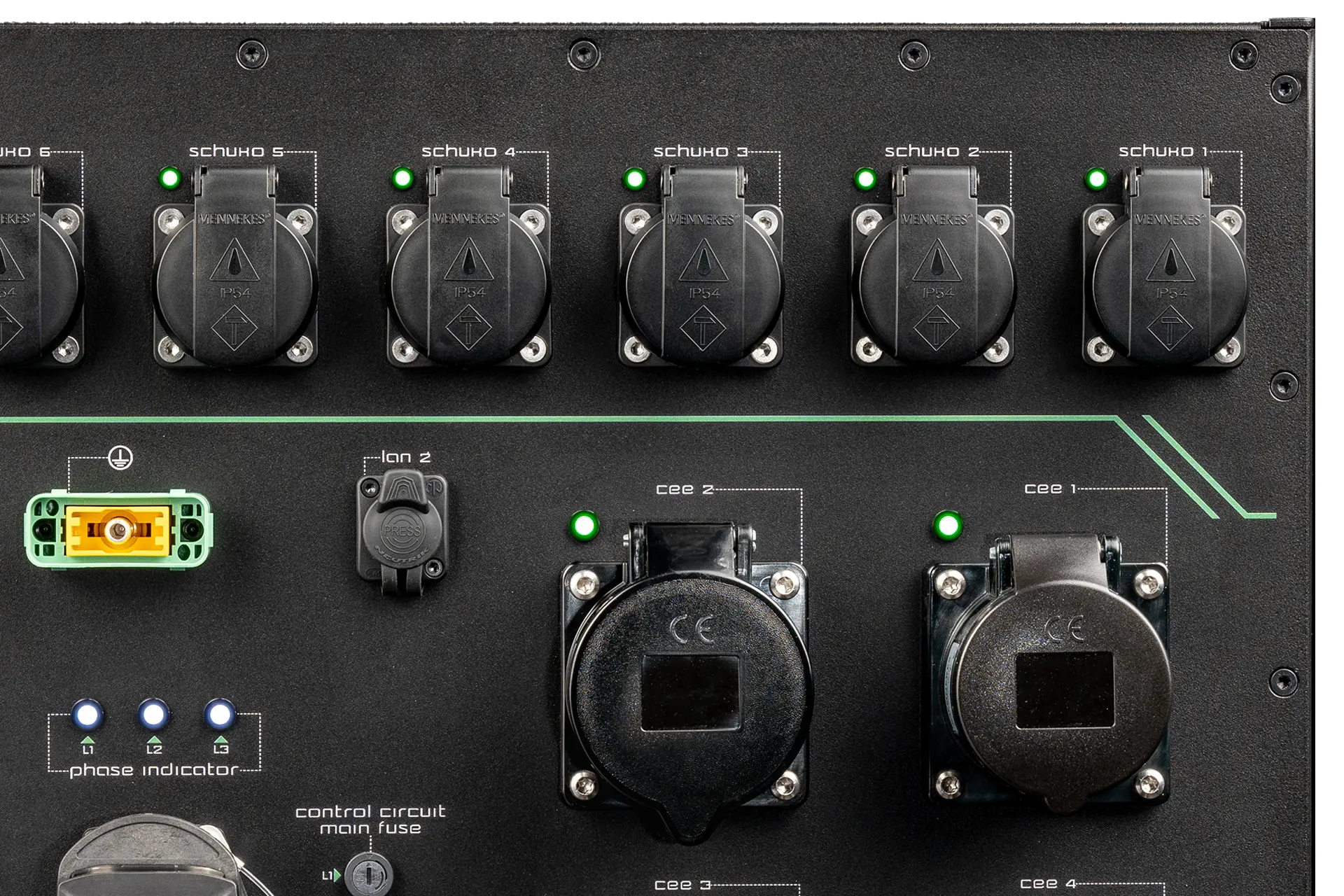

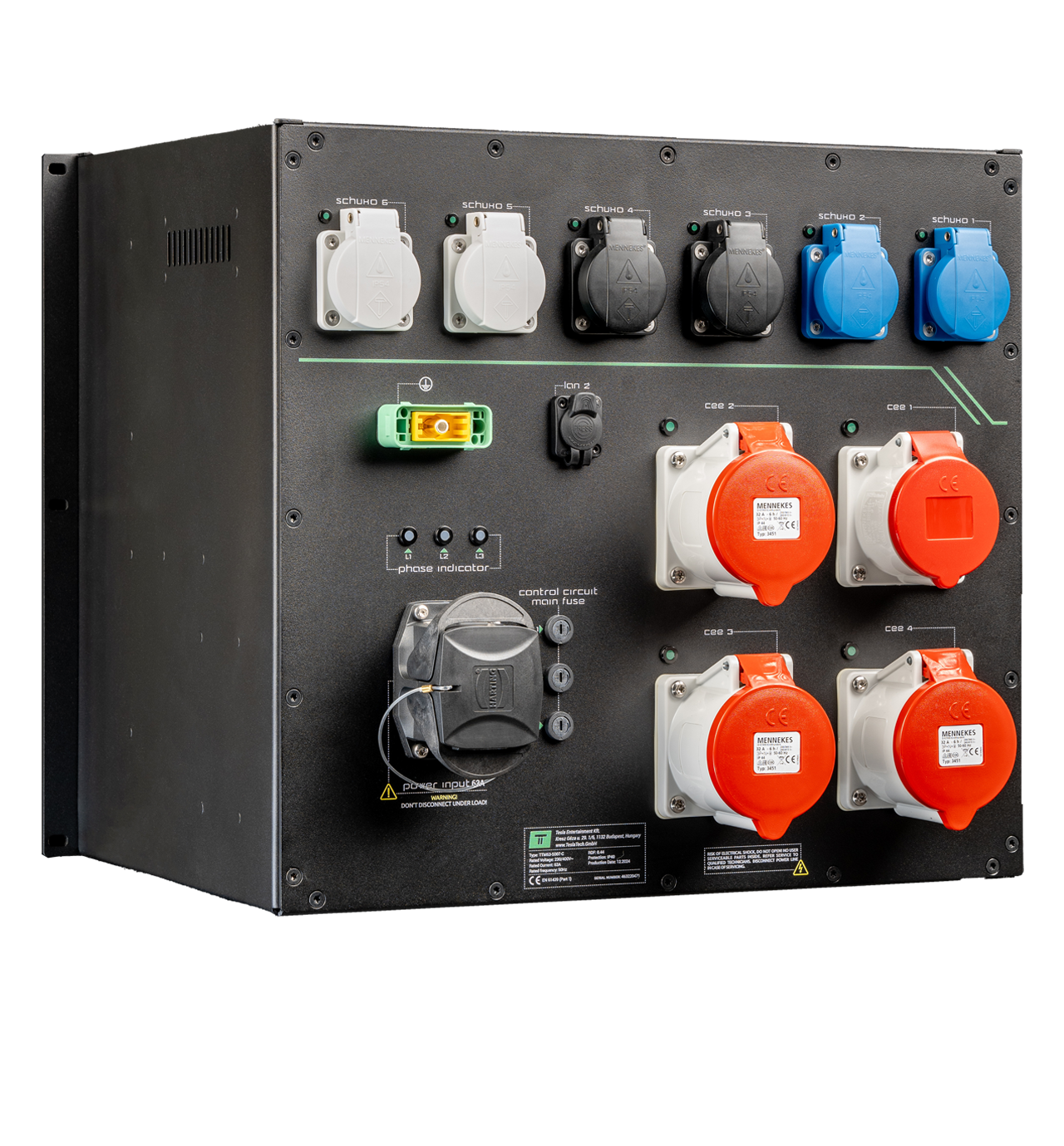

Close-up of the TTM63-003 rear panel with CEE outputs and six auxiliary Schuko outputs

Three-phase CEE outputs: 4×Three-phase CEE outputs
Configurable auxiliary outputs: 6×Configurable auxiliary outputs
Individually RCBO-protected outputs: 10×Individually RCBO-protected outputs
Remote power monitoring: PAC3220Remote power monitoring
19-inch · IP40: 9U19-inch · IP40

Technical information

Full product specifications

Explore complete product data, features, functionality, mechanical and electrical design, environmental ratings, compliance, configuration options and documentation.

Product data

Technical specifications

Input and input protection specifications for TTM63-003
Input	Input Protections
1× HAN® ECO 6B 70A 400 V 5P (Harting), equivalent of CEE 63A 400 V 5P	1× Main MCCB 63A 4P Icn: 25 kA (Siemens) with extended rotary handle
	1× Voltage monitoring relay (VMR) (Schneider Electric)

Output and output protection specifications for TTM63-003
Outputs	Output Protections
3× CEE 32A 400 V 5P (Mennekes)	3× RCBO C32A 30 mA 4P A-type (Siemens)
1× CEE 16A 400 V 5P (Mennekes)	1× RCBO C16A 30 mA 4P A-type (Siemens)
6× Auxiliary outputs, 230 V 3P, with selectable connector type	6× RCBO C16A* 30 mA 1P A-type (Siemens)
1× HAN® GND grounding connector (Harting)	Not applicable

*For selected auxiliary connectors, the rated current of the RCBO varies. The J1 version is fitted with an RCBO C10A 30 mA 1P A-type; the G1 and B1 versions are fitted with an RCBO C13A 30 mA 1P A-type.

Features

Key product features

Functionality

Operation & monitoring

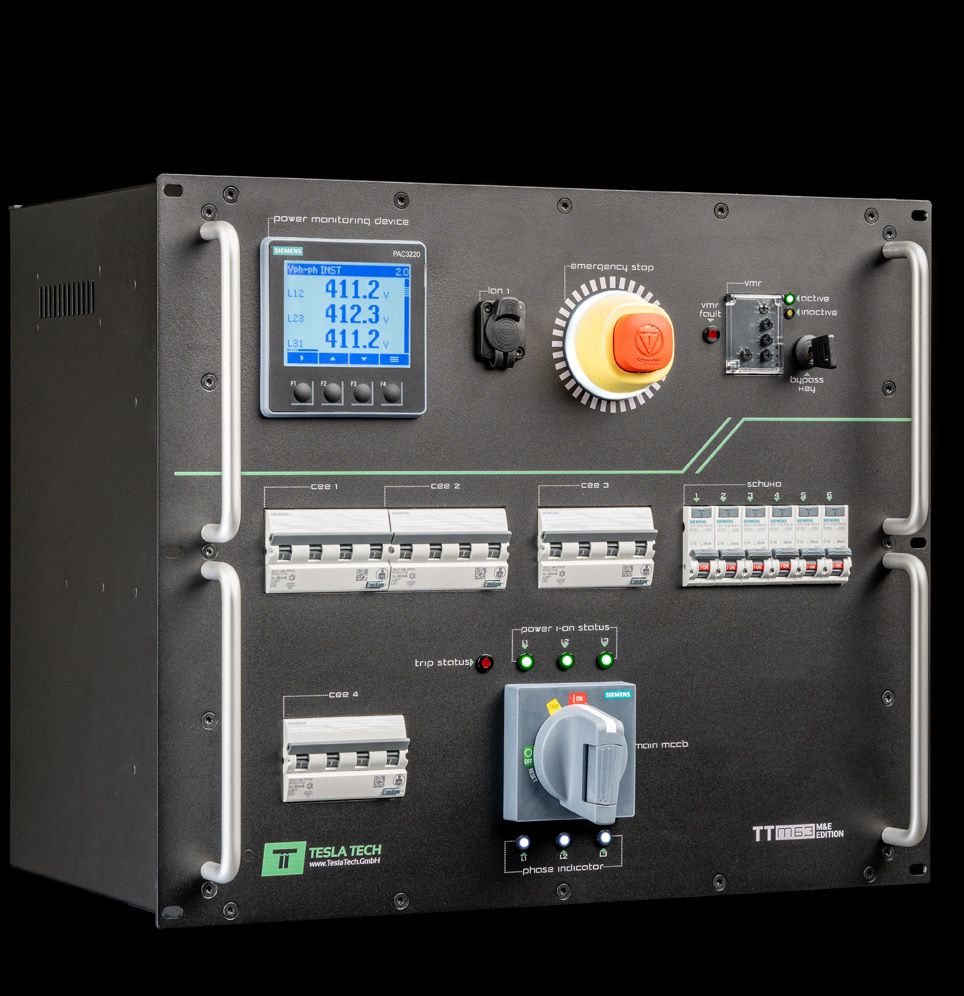

Siemens PAC3220 power monitoring display on the front panel

Remote Power Monitoring

Real-time power data, where you need it.

The integrated Siemens PAC3220 monitors voltage, current, power and energy consumption through three current transformers. Two panel-mounted Ethernet connections provide network access. Measurements can be viewed through the device’s built-in web interface on the same network without additional software, while Modbus TCP supports integration with compatible monitoring systems.

Voltage monitoring relay under its transparent cover

Voltage Monitoring and VMR Bypass

Continuous voltage supervision.

The phase-to-neutral voltage monitoring relay detects phase loss, missing neutral, overvoltage and undervoltage. When a critical fault is detected, it can initiate an alarm or disconnect the power supply. A secure key-operated bypass allows qualified personnel to temporarily override the VMR during controlled diagnostic or maintenance procedures.

Emergency Stop and Shunt Trip

Immediate shutdown when it matters.

The front-mounted Schneider Electric emergency stop immediately shuts down all outputs through the shunt-trip release of the main MCCB. External emergency or fault signals can also trip the MCCB. Monitoring systems and diagnostic circuits remain operational through independently protected circuits, supporting rapid fault identification and intervention.

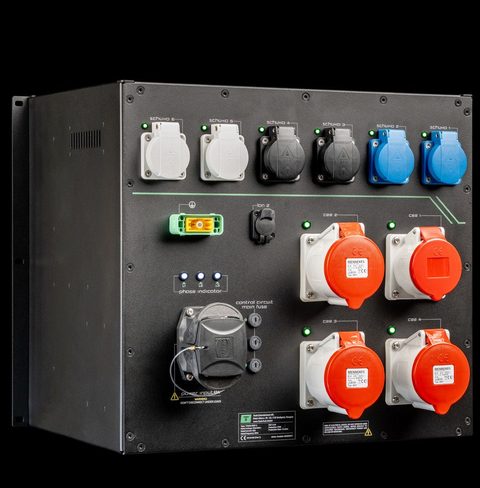

Output status LEDs beside the auxiliary connectors

Indicator LEDs

Clear status at a glance.

6× Phase presence indicator white LED, L1, L2 and L3
3× MCCB “ON” state green LED
1× MCCB “TRIP” state red LED
3× RCBO “I-ON” state green LED for CEE 32A 5P connectors
1× RCBO “I-ON” state green LED for the CEE 16A 5P connector
6× RCBO “I-ON” state green LED for auxiliary connectors
1× Fault Indicator red LED triggered by the VMR

Protective-device bank on the front panel

Independent Fuses

Diagnostics remain available after a trip.

The power monitoring device, VMR, emergency functions, diagnostic systems and related indicator LEDs are supplied through independently fused circuits. If the main MCCB trips, these systems remain active to support fault identification and maintain diagnostic visibility.

Design

Mechanical & electrical design

Mechanical and electrical design specifications for TTM63-003
Design Item	Specification
Ingress Protection	IP40. Protected against solid objects larger than 1 mm, with no protection against liquids. Intended only for dry, controlled indoor environments.
Enclosure Material	2.0 mm powder-coated aluminium sheet with a fine-textured finish, providing mechanical protection and corrosion resistance for professional indoor applications.
Overall Dimensions	400 x 485 x 365 mm, Height x Width x Depth
Rack Format	9U · 19-inch rack format
Handle Type	Fixed round-bar pull handles manufactured from aluminium alloy, suitable for manual handling and mounting support.
Labelling	All connectors and protective devices are identified with UV-printed markings resistant to UV exposure and solvent-based cleaning agents.
HAN® ECO 6B Input	Used as a lightweight and space-saving alternative to a panel-mounted CEE 63A 5P inlet, reducing enclosure depth and weight for rack-mounted configurations. HAN® ECO 6B to CEE 63A adapter cables are available.
Connector Installation	Quick Connector Replacement system. Connectors are mounted with four stainless steel screws and sufficient internal cable slack to allow replacement without dismantling the complete enclosure.
Internal Conductor Cross-Sections	63A circuits: 16 mm² Cu. 32A circuits: 6 mm² Cu. 16A circuits: 2.5 mm² Cu.
Internal Cabling	Helukabel flexible conductors, H07V-K or equivalent.
Terminal Blocks	Phoenix Contact or Ouneva spring-cage or screw-type terminals, selected according to application and load class.

Electrical

Electrical specifications

Electrical specifications for TTM63-003
Specification	Value
Rated Voltage	400 V AC, 3P+N+PE
Rated Current	63A
Frequency	50/60 Hz
Maximum Continuous Load	43 kVA, 43 kW at cos φ = 1
Rated Diversity Factor	0.44
Rated Conditional Short-Circuit Current	25 kA according to EN 60898
Protection Class	Class I, protective earth

Maximum continuous load is specified at an ambient air temperature of 30 °C.

Environment

Environmental ratings

Environmental ratings for TTM63-003
Rating	Value
Operating Temperature	−5 °C to +40 °C, with the average ambient temperature over a 24-hour period not exceeding +35 °C (in accordance with IEC/EN 61439 recommendations).
Storage Temperature	0 °C to +40 °C
Relative Humidity	Maximum 95% from −5 °C to +30 °C, decreasing to 70% at +35 °C and 57% at +40 °C, non-condensing, in accordance with IEC/EN 61439 recommendations
Maximum Installation Altitude	2,000 m above sea level

Compliance

Compliance & standards

Certifications and standards for TTM63-003
Category	Details
CE Compliance	Components and final assemblies are CE marked and compliant with the applicable EU directives, including the Low Voltage Directive 2014/35/EU and EMC Directive 2014/30/EU.
Standards Compliance	EN 61439-1: Low-voltage switchgear and controlgear assemblies, General rules.
Manufacturer Information	Tesla Entertainment Kft., H-1151 Budapest, Károlyi Sándor út 158., Hungary. EU VAT ID: HU26587255.
Country of Origin	Hungary. All units are assembled and tested at the Tesla Tech facility in Budapest.

Configuration

Auxiliary connector options

Select the right auxiliary connection. All auxiliary outputs use the selected connector type.

Auxiliary output configuration options for TTM63-003
Code	Type	Rated Current	IP Code	Manufacturer
F1	German / Austrian (Type F)	16A	IP54	Mennekes
F2	German / Austrian with gasket (Type F)	16A	IP54	Mennekes
E1	French / Belgian (Type E)	16A	IP44	Mennekes
G1	British (Type G)	13A	IP44	ABL
P1	powerCON® TRUE1 with rubber sealing cap	16A	IP65	Neutrik
J1	Swiss T13 (Type J)	10A	IP54	PCE
J2	Swiss T23 (Type J)	16A	IP54	PCE
B1	USA / Canada (Type B)	15A	IP44	ABL
K1	Danish (Type K)	16A	IP44	PCE
CE	CEE 6h	16A	IP54	Mennekes

The stated connector IP rating applies when all relevant lids and covers are fully closed. When connectors are mated, the achieved ingress protection depends on the IP rating of the connected plugs. The complete TTM enclosure remains rated IP40 and is intended for dry indoor use only.

Documentation

Downloads

Technical Specifications

PDF · EN

Download

User Manual

PDF · EN

Single-Line Diagram

PDF · EN

EU Declaration of Conformity

PDF · EN

Product information on this webpage is provided for guidance and may contain errors or omissions. Always refer to the latest downloadable product documentation for the definitive technical specifications and instructions.
