HANECO
HAN-ECO 6B Cable Adapters
Compact power connections for equipment fitted with HARTING Han-Eco® 6B interfaces. Choose a CEE 63A 5P adapter or a HAN-ECO connection cable, both built with TITANEX® H07RN-F 5G16 mm² cable.
HAN-ECO 6B5P5G16 mm²
Product ID
HANECO-01B-0150
Price on request
Quantity (cable assemblies)
1
Compact power connections
More room for your equipment.
HARTING Han-Eco® 6B provides a compact connection option where panel space is limited, including compatible Tesla Tech TTM rack-mounted PDUs.

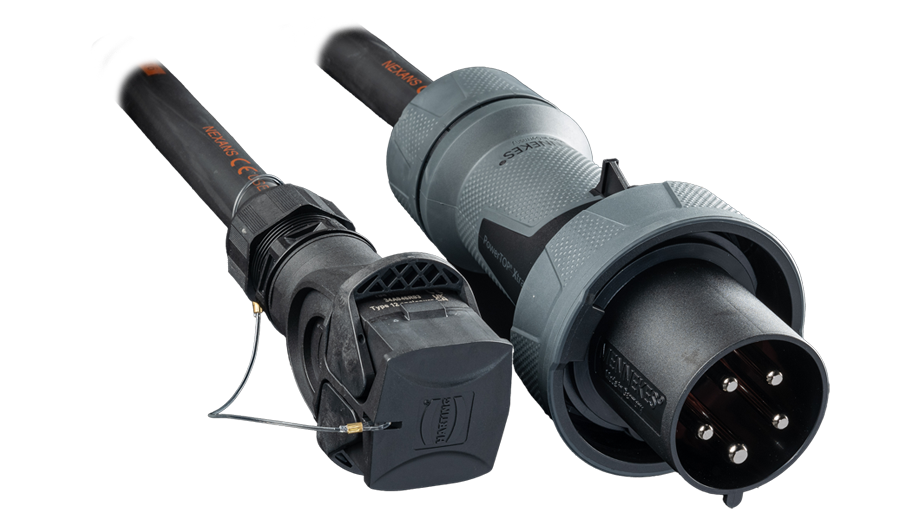

Choose the 01B adapter for a HAN-ECO 6B to CEE 63A 5P connection, or the 02B assembly for a HAN-ECO 6B panel-to-cable connection. Both use five-core TITANEX® H07RN-F cable with a fixed 16 mm² conductor cross-section.
Technical information
Full product specifications
Explore the technical details, available configurations and documentation for this product.
Product data
Technical specifications
| Field | Value |
|---|---|
| Product type | HAN-ECO 6B Cable Adapters |
| Connector manufacturers | HARTING; Mennekes for the CEE connector on 01B |
| Connector system | HARTING Han-Eco® 6B |
| Connection options | 01B: HAN-ECO 6B to CEE 63A 5P 02B: HAN-ECO 6B panel-to-cable |
| Pole count | 5P |
| Cable type | TITANEX® H07RN-F |
| Cable construction | 5G16 mm² |
| Number of conductors | 5, including protective earth |
| Conductor cross-section | 16 mm², fixed |
| Standard cable lengths | 1.5, 2.5, 5, 10, 15, 20, 25, 30, 40 and 50 m |

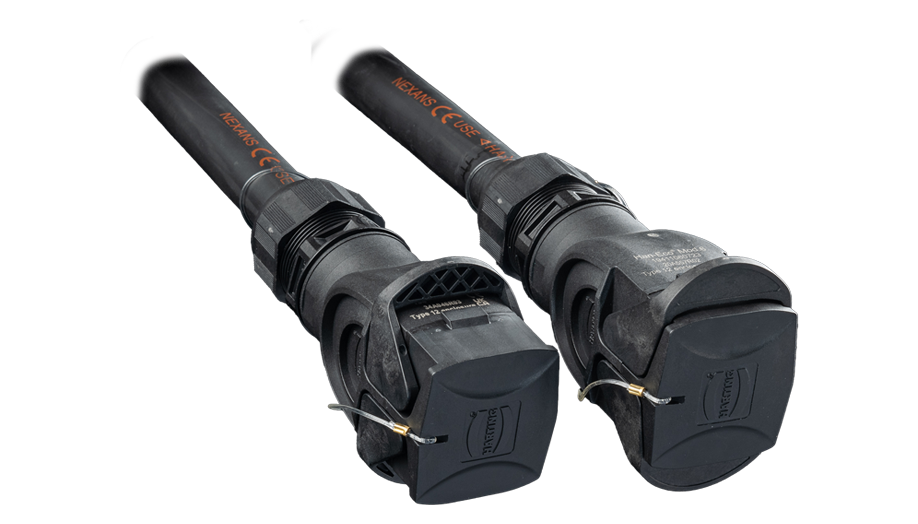

| Protective caps | Included on the HAN-ECO connectors |
| Connector protection rating | IP65 |
Identification
Built for fast identification.
Shrink tubes for self-labelling
Each cable assembly includes two 10 cm transparent, unshrunk tubes for your own identification labels.
Cable length identification
The cable length is marked at both ends for quick identification during setup and pack-down.
Lashing cable strap
An included cable strap keeps the assembly organised during storage, transport and handling.
Connector system
The connection your equipment needs.

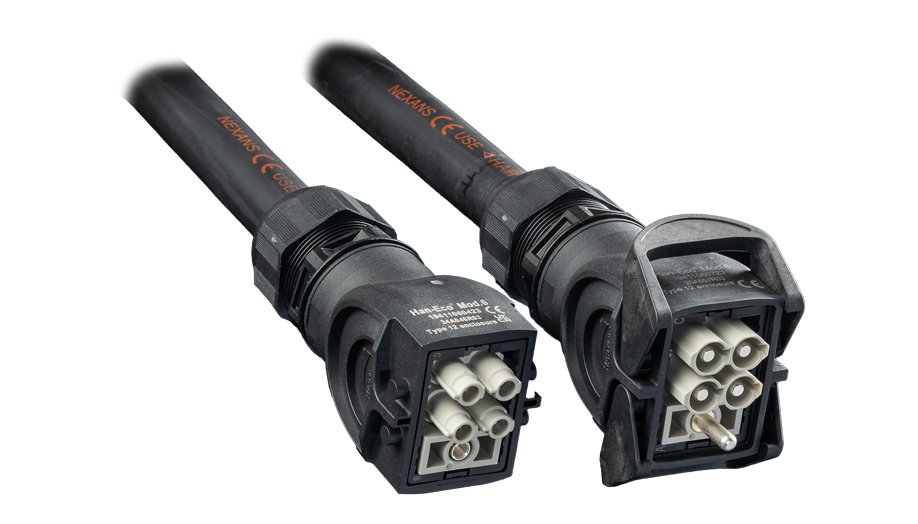

Choose the arrangement that matches the interfaces on your equipment. Both variants use HARTING Han-Eco® 6B connectors and TITANEX® H07RN-F 5G16 mm² cable.
Cable
Built with TITANEX® H07RN-F.
Five-core TITANEX® H07RN-F cable with a fixed 16 mm² conductor cross-section combines flexibility for handling with a durable elastomer sheath.
Flexible handling
Flexible TITANEX® H07RN-F cable supports handling, routing and coiling during repeated setup and pack-down.
Mechanical durability
The cross-linked elastomer sheath provides resistance to mechanical stress encountered during professional use.
Resistance to the elements
The cable material offers resistance to oil, UV exposure and moisture within the conditions specified in the TITANEX® datasheet.
Electrical
Electrical specifications
| Field | Value |
|---|---|
| Pole count | 5P |
| Number of cable conductors | 5, including protective earth |
| Cable type | TITANEX® H07RN-F |
| Cable construction | 5G16 mm² |
| Conductor cross-section | 16 mm² |
| Cable nominal voltage, U₀/U | 450/750 V AC |
| HAN-ECO connector current rating | 70A, connector only |
| CEE connector current rating, variant 01B | 63A, connector only |
Cable and connector ratings describe their respective components. The permissible rating of the complete assembly depends on the fitted components and installation conditions. The 70A HAN-ECO connector rating does not increase the rating of the 63A CEE connector used on variant 01B.
Environment
Environmental ratings
| Field | Value |
|---|---|
| Cable operating temperature, flexing | −25°C to +55°C |
| Cable operating temperature, fixed installation | −25°C to +75°C |
| Cable oil resistance | Oil-resistant |
| Cable UV resistance | UV-resistant |
| Cable water resistance | Resistant to splashes and humidity |
| Connector protection rating | IP65, subject to the connector manufacturer’s assembly and mating conditions |
These properties describe TITANEX® H07RN-F cable. The operating limits and environmental protection of the complete assembly also depend on the fitted connectors and their mating conditions.
Documentation
Downloads
TITANEX® H07RN-F Data Sheet
PDF · EN
Technical Specification
PDF · EN
EU Declaration of Conformity
PDF · EN
Product information on this webpage is provided for guidance and may contain errors or omissions. Always refer to the latest downloadable product documentation for the definitive technical specifications and instructions.
