GND
HARTING Han® GND Bonding Cables
Dedicated equipotential bonding connections built with single-core TITANEX® H07RN-F cable and a fixed 16 mm² conductor cross-section. Choose a HARTING Han® GND connection arrangement or an M8, M10 or M12 fork-lug termination to match your equipment.
16 mm²Single-coreHARTING Han® GND
Product ID
GND-01C-0150
Price on request
Quantity (cable assemblies)
1
Equipotential bonding
A dedicated connection for your bonding network.
Connect equipment into the production’s equipotential bonding network with a cable assembly matched to its bonding points. HARTING Han® GND connection options and M8, M10 or M12 fork-lug terminations provide a choice of interfaces for different equipment arrangements.
Every standard assembly uses single-core TITANEX® H07RN-F cable with a fixed 16 mm² conductor cross-section. Choose from ten standard lengths, with cable-length markings at both ends and transparent sleeves for your own identification labels.
Technical information
Full product specifications
Explore the technical details, available configurations and documentation for this product.
Product data
Technical specifications
| Field | Value |
|---|---|
| Product type | Bonding Cable Assemblies |
| Intended application | Equipotential bonding |
| Connector system | HARTING Han® GND |

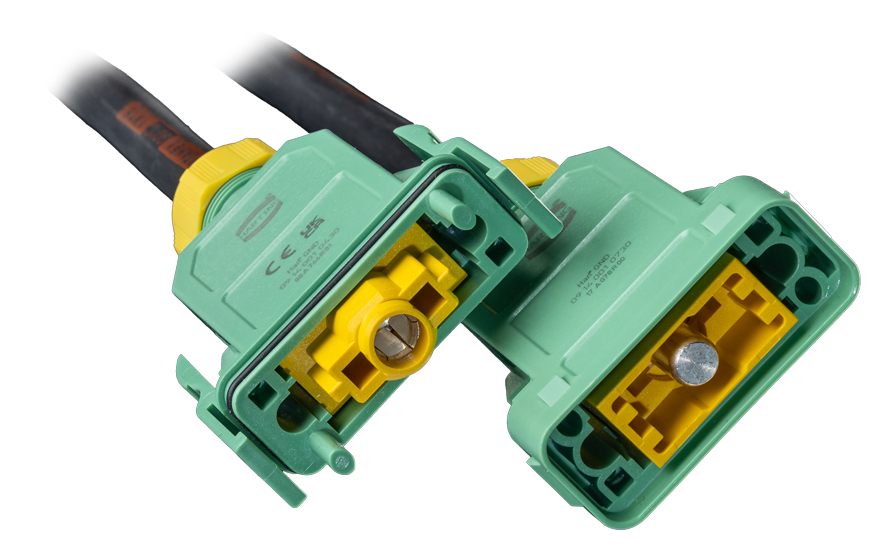

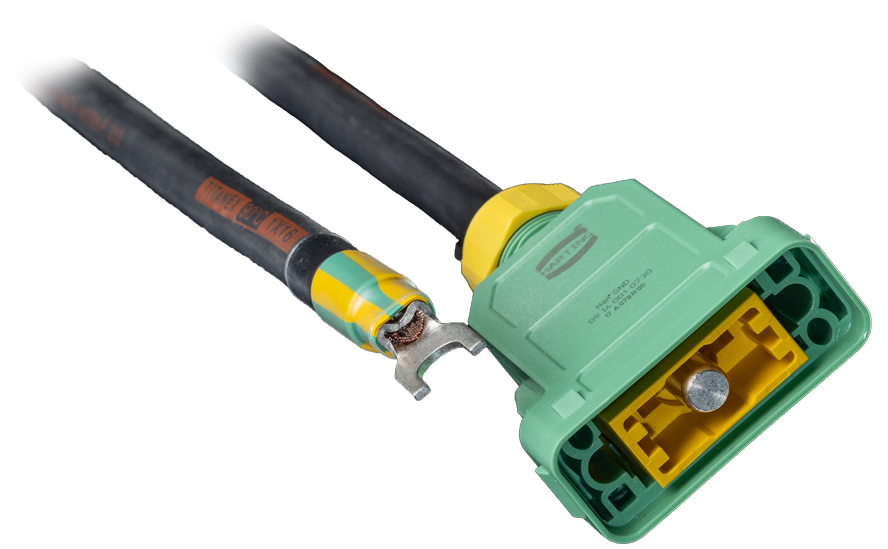

| Connection options | 01C: HAN GND, panel-to-panel 02C: HAN GND, panel-to-cable 03C: HAN GND to M8 fork-type cable lug 04C: HAN GND to M10 fork-type cable lug 05C: HAN GND to M12 fork-type cable lug |
| Cable type | TITANEX® H07RN-F |
| Cable construction | Single-core, 1 × 16 mm² |
| Number of conductors | 1 |
| Conductor cross-section | 16 mm², fixed |
| Standard cable lengths | 1.5, 2.5, 5, 10, 15, 20, 25, 30, 40 and 50 m |
Identification
Built for fast identification.
Shrink tubes for self-labelling
Each cable assembly includes two 10 cm transparent, unshrunk tubes for your own identification labels.
Cable length identification
The cable length is marked at both ends for quick identification during setup and pack-down.
Connector system
Match the connection to your bonding point.
Choose the connection arrangement that matches the bonding interfaces on your equipment. All five variants use the same single-core 16 mm² TITANEX® H07RN-F cable.
Cable
Built with TITANEX® H07RN-F.
Single-core TITANEX® H07RN-F cable with a fixed 16 mm² conductor cross-section combines flexibility for handling with a durable elastomer sheath.
Flexible handling
Flexible TITANEX® H07RN-F cable supports handling, routing and coiling during repeated setup and pack-down.
Mechanical durability
The cross-linked elastomer sheath provides resistance to mechanical stress encountered during professional use.
Resistance to the elements
The cable material offers resistance to oil, UV exposure and moisture within the conditions specified in the TITANEX® datasheet.
Electrical
Electrical specifications
| Field | Value |
|---|---|
| Intended electrical function | Equipotential bonding |
| Number of conductors | 1 |
| Cable type | TITANEX® H07RN-F |
| Cable construction | Single-core, 1 × 16 mm² |
| Conductor cross-section | 16 mm² |
| Cable nominal voltage, U₀/U | 450/750 V AC, cable insulation rating only |
The cable voltage rating describes its insulation, not the operating voltage of a bonding circuit. Suitability of the complete assembly must be assessed against the project’s bonding requirements and fault conditions.
Environment
Environmental ratings
| Field | Value |
|---|---|
| HAN GND connector protection | IP65, subject to the connector manufacturer’s assembly and mating conditions |
| Cable operating temperature, flexing | −25°C to +55°C |
| Cable operating temperature, fixed installation | −25°C to +75°C |
| Cable oil resistance | Oil-resistant |
| Cable UV resistance | UV-resistant |
| Cable water resistance | Resistant to splashes and humidity |
The cable properties above describe TITANEX® H07RN-F. IP65 refers to the Han® GND connector system under the manufacturer’s specified conditions; it does not describe the exposed fork-lug termination on variants 03C, 04C and 05C. Environmental suitability of the complete connection also depends on the mating equipment and installation.
Documentation
Downloads
TITANEX® H07RN-F Data Sheet
PDF · EN
Technical Specification
PDF · EN
EU Declaration of Conformity
PDF · EN
Product information on this webpage is provided for guidance and may contain errors or omissions. Always refer to the latest downloadable product documentation for the definitive technical specifications and instructions.
