TTP32-003

Name: TTP32-003
Brand: Tesla Tech
SKU: TTP32-003

32A Plastic PDU · CEE 32A 5P input · Looped 32A output · 10 RCBO-protected outputs

32AIP54

Input

Protection

CEE 32A 5PMCB

Outputs

Protection

1× CEE 32A 5PLooped

1× CEE 16A 5P1× RCBO

9× auxiliary9× RCBO

Auxiliary connectorF2

Connector colourC

Product ID

TTP32-003-F2-C

Price on request

Built for local power distribution

One looped 32A output. Ten RCBO-protected outputs.

TTP32-003 is built for productions that need to continue a 32A supply while distributing power locally. A looped CEE 32A output feeds the next distribution point, while one individually RCBO-protected CEE 16A three-phase output and nine configurable auxiliary outputs provide ten locally protected outputs around the working area.

Everything is integrated into a compact, stackable IP54 HDPE enclosure, built for repeated deployment in professional indoor and outdoor productions.

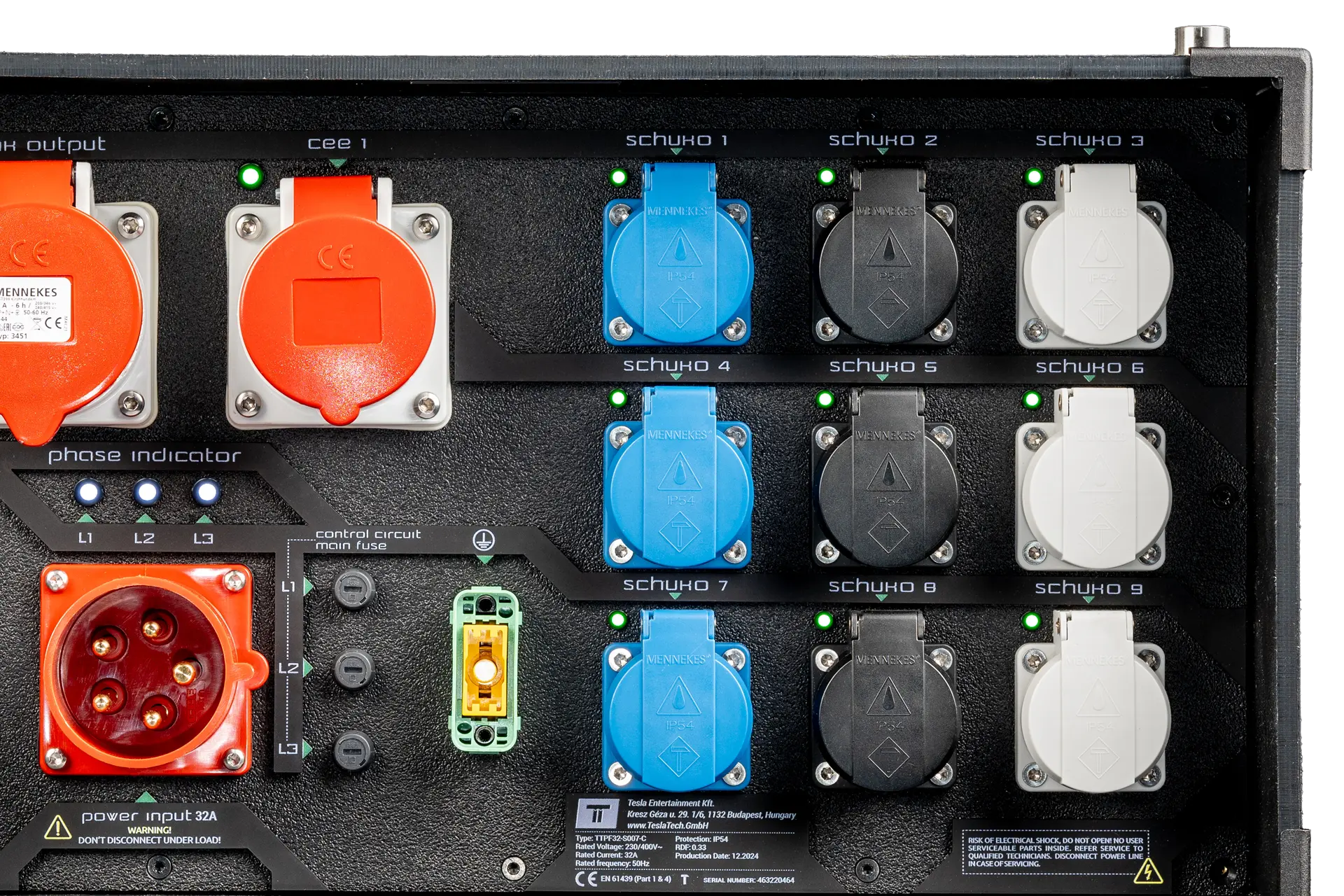

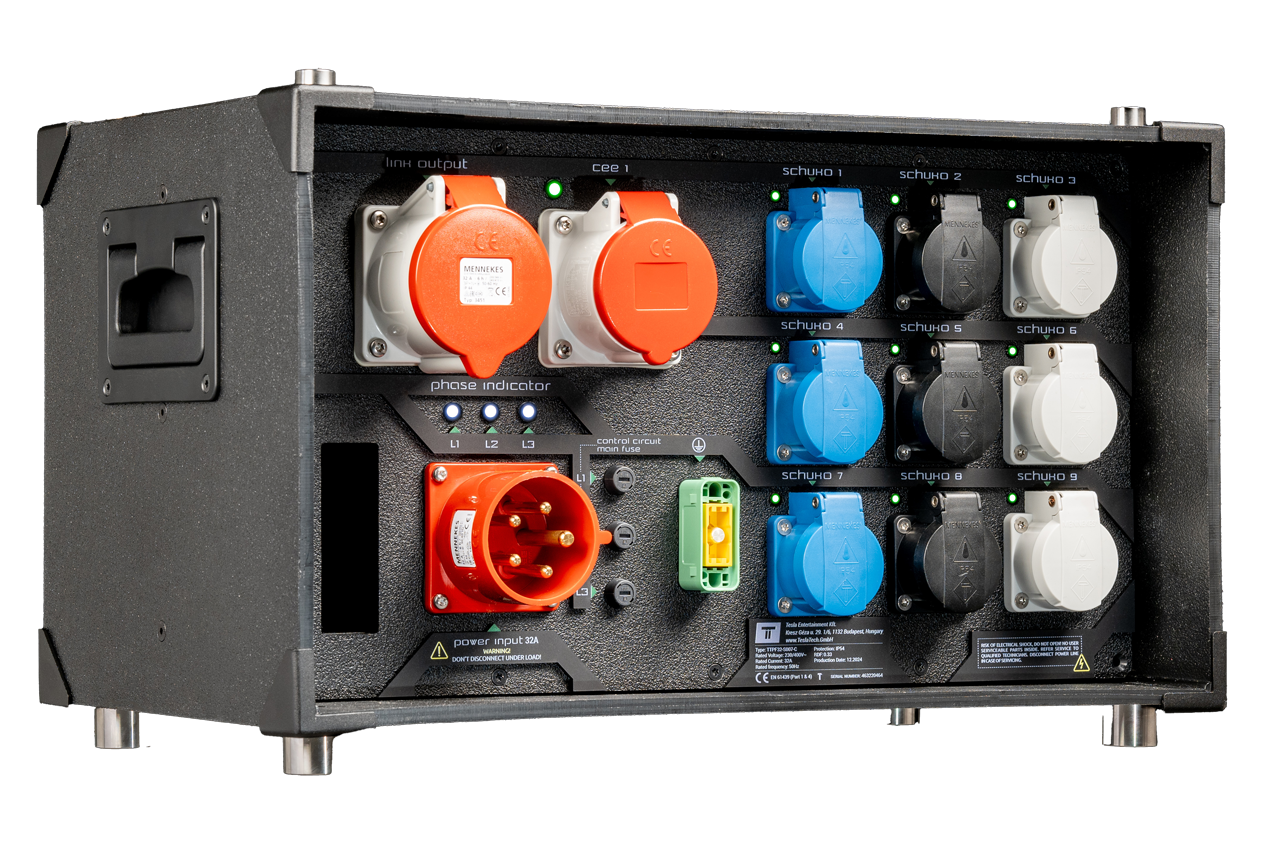

Close-up of the TTP32-003 rear panel with CEE outputs and nine Schuko sockets

Configurable auxiliary outputs: 9×Configurable auxiliary outputs
RCBO-protected outputs in total: 10RCBO-protected outputs in total
Indoor & outdoor productions: IP54Indoor & outdoor productions

Technical information

Full product specifications

Explore complete product data, features, functionality, mechanical and electrical design, environmental ratings, compliance, configuration options and documentation.

Product data

Technical specifications

Input and input protection specifications for TTP32-003
Input	Input Protections
1× CEE 32A 400 V 5P (Mennekes)	1× Main MCB C32A 4P Icn: 10 kA (Siemens)

Output and output protection specifications for TTP32-003
Outputs	Output Protections
1× CEE 32A 400 V 5P (Mennekes)	Looped
1× CEE 16A 400 V 5P (Mennekes)	1× RCBO C16A 30 mA 4P A-type (Siemens)
9× Auxiliary outputs, 230 V 3P, with selectable connector type	9× RCBO C16A* 30 mA 1P A-type (Siemens)
1× HAN® GND grounding connector (Harting)	Not applicable

*For selected auxiliary connectors, the rated current of the RCBO varies. The J1 version is fitted with an RCBO C10A 30 mA 1P A-type; the G1 and B1 versions are fitted with an RCBO C13A 30 mA 1P A-type.

Features

Key product features

Functionality

Operation & monitoring

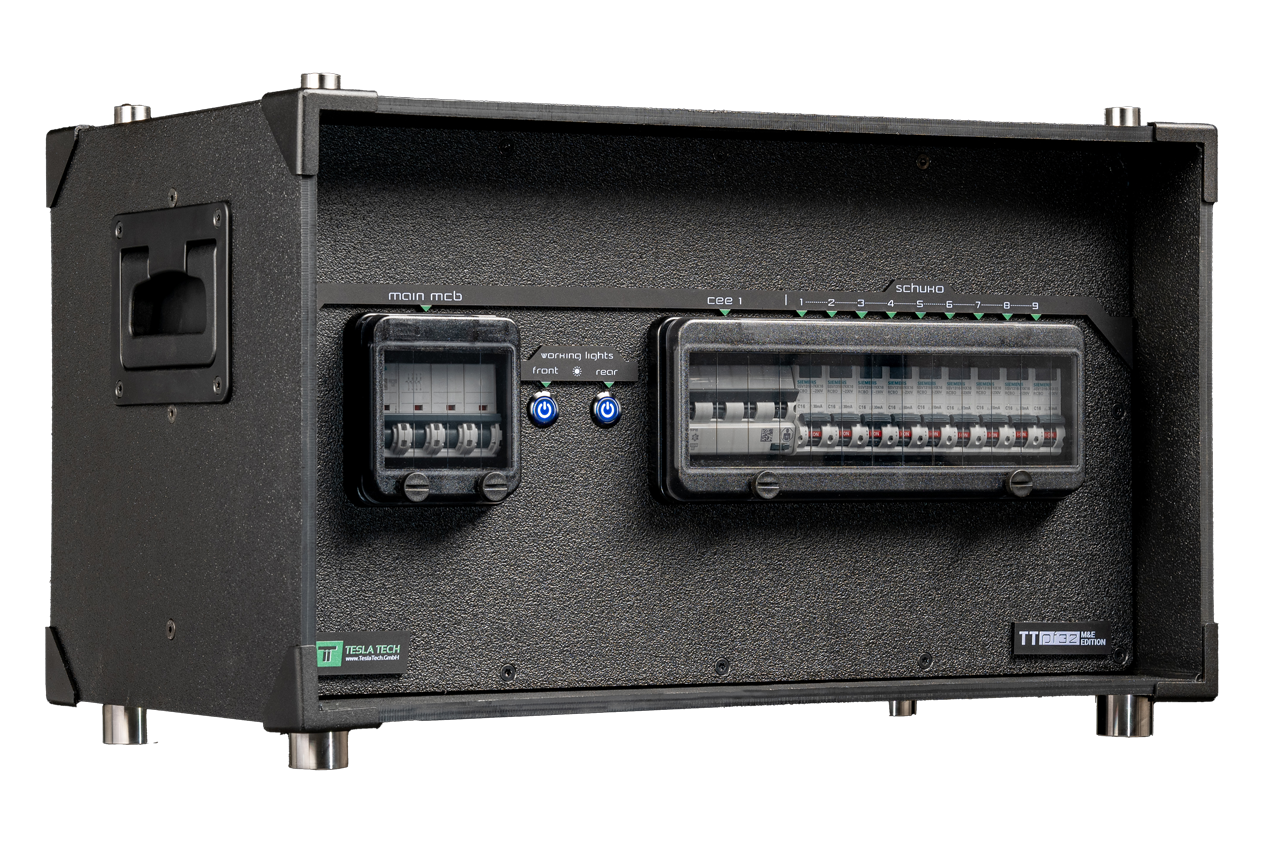

Indicator LEDs

3× phase presence white LED for L1, L2 and L3
1× green RCBO “I-ON” state LED for the CEE 16A 5P output
9× green RCBO “I-ON” state LED for the auxiliary connectors

Control-circuit fuses next to the power input

Independent Fuses

All phase presence indicator LEDs are powered through an independently fused circuit. If the main MCB trips, the LEDs remain operational to support fault diagnostics, including phase-loss detection.

Work-light pushbuttons on the front panel

Integrated Work Lights

One front and one rear working light, controlled by front-panel pushbuttons, improve safety and visibility during setup, operation and maintenance in low-light environments.

Design

Mechanical & electrical design

Mechanical and electrical design specifications for TTP32-003
Design Item	Specification
Ingress Protection	IP54-rated enclosure, including transparent hinged covers for the MCB and RCBOs, providing dust protection and water splash resistance in semi-outdoor or protected outdoor environments.
Enclosure Material	Constructed from high-density polyethylene with a structured surface. The HDPE material is UV-stabilised and water-resistant, providing long-term durability and mechanical strength in demanding field applications.
Overall Dimensions	325 x 520 x 305 mm, Height x Width x Depth
Handles	Two heavy-duty industrial-grade handles for safe and ergonomic transport.
Feet	Eight stainless steel stacking feet for wear resistance and stable vertical stacking during storage and transport.
Labelling	All connectors and protective devices are identified with durable UV-printed markings resistant to sunlight, abrasion and solvent-based cleaning agents.
Connector Installation	Quick Connector Replacement system. Connectors are mounted with four stainless steel screws and sufficient internal cable slack, allowing replacement without disassembling the complete enclosure.
Internal Conductor Cross-Sections	32A circuits: 6 mm² Cu. 16A circuits: 2.5 mm² Cu.
Internal Cabling	Helukabel flexible conductors, H07V-K or equivalent.
Terminal Blocks	Phoenix Contact or Ouneva spring-cage or screw-type terminals, selected according to the application and load class.

Electrical

Electrical specifications

Electrical specifications for TTP32-003
Specification	Value
Rated Voltage	400 V AC, 3P+N+PE
Rated Current	32A
Frequency	50/60 Hz
Maximum Continuous Load	22 kVA at 30 °C, equivalent to 22 kW at cos φ = 1
Rated Diversity Factor with Loop Output in Use	0.33
Rated Diversity Factor without Loop Output in Use	0.5
Rated Conditional Short-Circuit Current	10 kA, in accordance with EN 60898
Protection Class	Class I, protective earth

Maximum continuous load is specified at an ambient air temperature of 30 °C.

Environment

Environmental ratings

Environmental ratings for TTP32-003
Rating	Value
Operating Temperature	−25 °C to +40 °C, with the average ambient temperature over a 24-hour period not exceeding +35 °C (in accordance with IEC/EN 61439 recommendations).
Storage Temperature	0 °C to +40 °C
Relative Humidity	Maximum 100% from −25 °C to +27 °C, decreasing to 60% at +35 °C and 46% at +40 °C, non-condensing, in accordance with IEC/EN 61439 recommendations
Maximum Installation Altitude	2,000 m above sea level

Compliance

Compliance & standards

Certifications and standards for TTP32-003
Category	Details
CE Compliance	Components and final assemblies are CE marked and compliant with the applicable EU directives, including the Low Voltage Directive 2014/35/EU and EMC Directive 2014/30/EU.
Standards Compliance	EN 61439-1: Low-voltage switchgear and controlgear assemblies, General rules. EN 61439-4: Assemblies for construction sites.
Manufacturer Information	Tesla Entertainment Kft., H-1151 Budapest, Károlyi Sándor út 158., Hungary. EU VAT ID: HU26587255.
Country of Origin	Hungary. All units are assembled and tested at the Tesla Tech facility in Budapest.

Configuration

Auxiliary connector options

Select the right auxiliary connection. All auxiliary outputs use the selected connector type.

Auxiliary output configuration options for TTP32-003
Code	Type	Rated Current	IP Code	Manufacturer
F1	German / Austrian (Type F)	16A	IP54	Mennekes
F2	German / Austrian with gasket (Type F)	16A	IP54	Mennekes
E1	French / Belgian (Type E)	16A	IP44	Mennekes
G1	British (Type G)	13A	IP44	ABL
P1	powerCON TRUE1 with sealing self-closing cap	16A	IP65	Neutrik
J1	Swiss T13 (Type J)	10A	IP54	PCE
J2	Swiss T23 (Type J)	16A	IP54	PCE
B1	USA / Canada (Type B)	15A	IP44	ABL
K1	Danish (Type K)	16A	IP44	PCE
CE	CEE 6h	16A	IP54	Mennekes

The stated IP rating applies when all enclosure lids and covers are fully closed. When connectors are mated, the overall ingress protection level may depend on the IP rating of the connected plugs.

Documentation

Downloads

Technical Specifications

PDF · EN

Download

User Manual

PDF · EN

Single-Line Diagram

PDF · EN

EU Declaration of Conformity

PDF · EN

Product information on this webpage is provided for guidance and may contain errors or omissions. Always refer to the latest downloadable product documentation for the definitive technical specifications and instructions.
