SCHUKO-03B / 06B
PCE TopTaurus2 Schuko Cable with LED Indicator
Professional 16A Schuko extension cable with PCE TopTaurus2 connectors, an integrated LED voltage indicator and TITANEX® H07RN-F cable.
16AIP54LED voltage indicatorType F / Type E
Product ID
SCHUKO-03B-0150-1.5
Price on request
1
Professional power extension
Voltage presence at a glance.

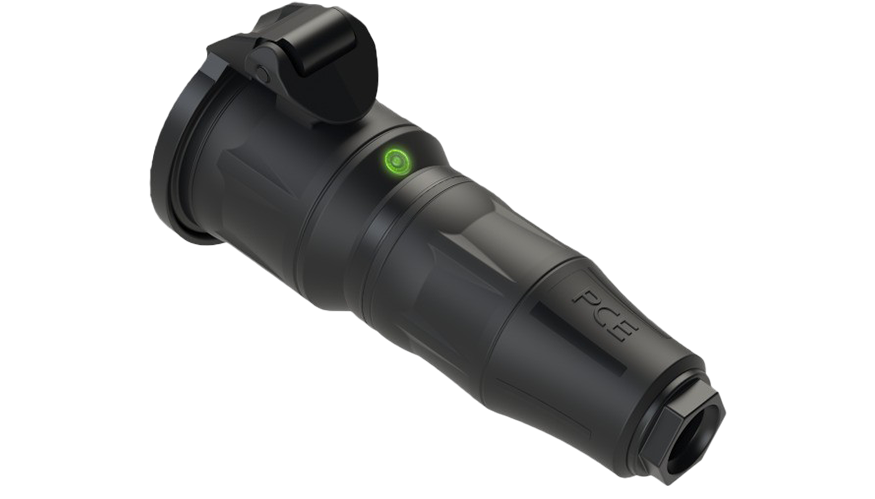

An integrated LED in the female connector provides a visible indication of voltage presence at the connection point. PCE TopTaurus2 connectors and flexible TITANEX® cable support repeated handling during setup and pack-down.
Available with Type F or Type E connections.
Technical information
Full product specifications
Explore complete product data, identification, connectors, cable construction, electrical and environmental ratings, compliance and documentation.
Product data
Technical specifications
| Field | Value |
|---|---|
| Product type | Schuko cable assembly |
| Connector manufacturer | PCE |
| Male connector | PCE TopTaurus2 plug |
| Female connector | PCE TopTaurus2 coupler with hinged lid and LED voltage indicator |
| Connector standard | Type F: 03B · Type E: 06B |
| Voltage indication | Integrated LED voltage indicator in the female connector |
| Degree of protection | IP54 connector protection rating, subject to correct use and the connector manufacturer's specifications. |
| Cable type | TITANEX® H07RN-F |
| Standard lengths | 1.5, 2.5, 5, 10, 15, 20, 25, 30, 40 and 50 m |
Identification
Built for fast identification.
Shrink tubes for self-labelling
Each cable assembly includes two 10 cm transparent, unshrunk tubes for your own identification labels.
Cable length identification
The cable length is marked at both ends for quick identification during setup and pack-down.
Connector system
Type F or Type E.
Cable
Built with TITANEX® H07RN-F.
Flexible handling
Flexible TITANEX® H07RN-F cable supports handling, routing and coiling during repeated setup and pack-down.
Mechanical durability
The cross-linked elastomer sheath provides resistance to mechanical stress encountered during professional use.
Resistance to the elements
The cable material offers resistance to oil, UV exposure and moisture within the conditions specified in the TITANEX® datasheet.
Electrical
Electrical specifications
| Field | Value |
|---|---|
| Assembly rated current | 16A |
| Assembly rated voltage | 250 V AC |
| Pole count | 2P+E (3 poles) |
| Electrical protection class | Class I |
| Cable nominal voltage | U₀/U 450/750 V |
| Number of cores | 3, including protective earth |
| Cable construction, option 1 | 3G1.5 mm² |
| Cable construction, option 2 | 3G2.5 mm² |
Environment
Environmental ratings
| Field | Value |
|---|---|
| Cable operating temperature, flexing | −25 °C to +55 °C |
| Cable oil resistance | Yes |
| Cable UV resistance | Yes |
| Cable water resistance | Resistant to splashes and humidity |
| Indoor use | Yes |
| Outdoor use | Yes, subject to the IP54 connector rating and specified operating conditions |
Cable-material properties refer to the TITANEX® H07RN-F cable. Use of the complete assembly must also comply with the connector specifications and operating conditions.
Compliance
Compliance
| Field | Value |
|---|---|
| Cable designation | H07RN-F |
| Cable standard | EN 50525-2-21 |
| Core identification | HD 308 S2 |
| Cable flame test | IEC/EN 60332-1-2 |
| Cable RoHS compliance | Compliant |
| Connector protection rating | IP54 |
| Protective conductor | Green/yellow |
| Electrical protection class | Class I |
| Connector manufacturer | PCE |
Documentation
Downloads
TITANEX® H07RN-F Data Sheet
PDF · EN
Technical Specification
PDF · EN
EU Declaration of Conformity
PDF · EN
Product information on this webpage is provided for guidance and may contain errors or omissions. Always refer to the latest downloadable product documentation for the definitive technical specifications and instructions.
