View & Configure PowerLock Cable Assemblies
PWLOCK
PowerLock Cable Assemblies
Single-core TITANEX® H07RN-F cables with Valentini PowerSyntax® connectors for professional temporary power distribution. Available from 95 to 300 mm², as individual conductors or complete five-cable sets.
IP67 when matedSingle-poleIndividual or set
Product ID
PWLOCK-ST-0150-095
Price on request
Quantity (sets)
Each set contains five cable assemblies: PE, N, L1, L2 and L3.
1
Single-pole power connections
Individual conductors. Complete five-cable sets.
From adding individual conductors to your cable stock to equipping a complete distribution connection, choose the assembly your setup requires.
Order protective earth, neutral and phase conductors individually, or select a complete PE, N, L1, L2 and L3 set. Each assembly uses single-core TITANEX® H07RN-F cable with Valentini PowerSyntax® connectors, with cable length identification and a lashing strap included.
Technical information
Full product specifications
Explore the technical details, available configurations and documentation for this product.
Product data
Technical specifications
| Field | Value |
|---|---|
| Product type | PowerLock Cable Assemblies |
| Cable manufacturer/range | TITANEX® |
| Cable designation | H07RN-F |
| Cable construction | Single-core |
| Available cable cross-sections | 95, 120, 150, 185, 240 and 300 mm² |
| Connector manufacturer | Valentini |
| Connector range | PowerSyntax® |
| Connector system | PowerLock-compatible single-pole connectors |
| Supply options | Individual conductor or complete five-cable set |
| Complete set | PE, N, L1, L2 and L3 |

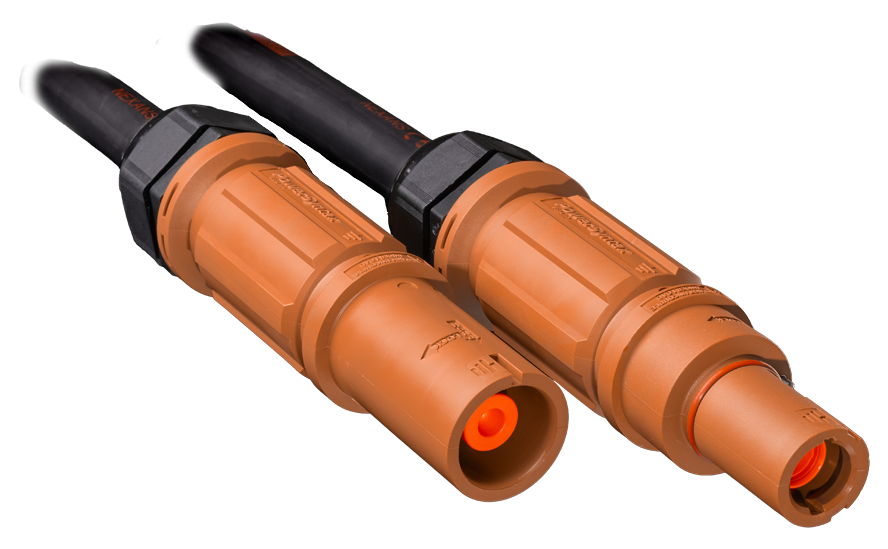

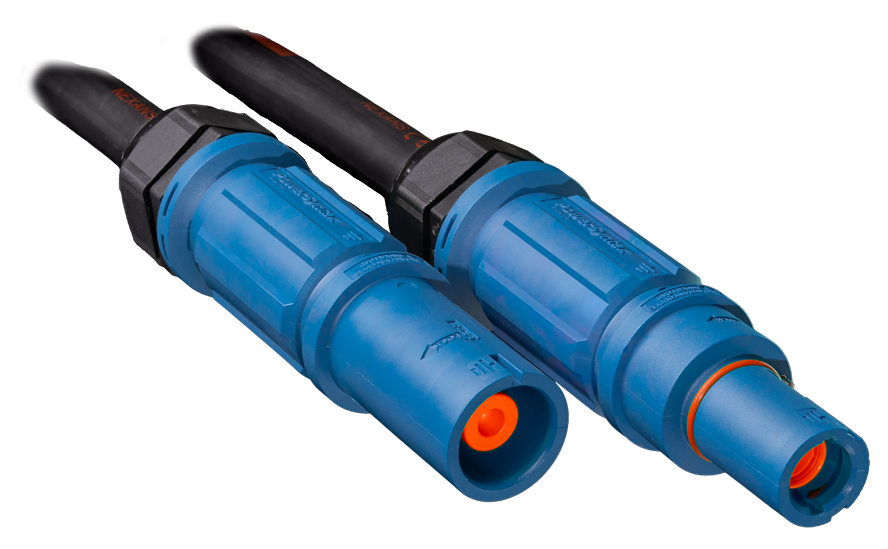

| Conductor colours and codes | ST: Complete five-cable set: ground, neutral, L1, L2 and L3 · GN: Ground · BL: Neutral · BR: Line 1 · BK: Line 2 · GY: Line 3 |
| Available lengths | 1.5 m, 2.5 m, 5 m, 10 m, 15 m, 20 m, 25 m, 30 m, 40 m, 50 m |
Identification
Built for fast identification.
Shrink tubes for self-labelling
Each cable assembly includes two 10 cm transparent, unshrunk tubes for your own identification labels.
Cable length identification
The cable length is marked at both ends for quick identification during setup and pack-down.
Lashing cable strap
An included cable strap keeps the assembly organised during storage, transport and handling.
Connector system
Individual conductor or complete set.
Cable
Built with TITANEX® H07RN-F.
TITANEX® H07RN-F combines flexibility for handling and coiling with a durable elastomer sheath. These assemblies use single-core cable in cross-sections from 95 to 300 mm².
Flexible handling
Flexible TITANEX® H07RN-F cable supports handling, routing and coiling during repeated setup and pack-down.
Mechanical durability
The cross-linked elastomer sheath provides resistance to mechanical stress encountered during professional use.
Resistance to the elements
The cable material offers resistance to oil, UV exposure and moisture within the conditions specified in the TITANEX® datasheet.
Electrical
Electrical specifications
| Field | Value |
|---|---|
| Connector pole count | 1P per connector |
| Connector current rating | 480A or 750A, depending on connector version |
| Connector operating voltage | 1000 V AC / 1000 V DC |
| Cable nominal voltage, U₀/U | 450/750 V |
| Cable construction | Single-core copper conductor |
| Cable cross-section | 95–300 mm² |
| Connector contact resistance | <0.1 mΩ |
Cable cross-section and reference current
The following catalogue values show the reference current for each cable cross-section under the stated temperature conditions.
| Code | Cable cross-section | Catalogue reference current¹ |
|---|---|---|
| 095 (selected) | 95 mm² | 328A |
| 120 | 120 mm² | 382A |
| 150 | 150 mm² | 441A |
| 185 | 185 mm² | 506A |
| 240 | 240 mm² | 599A |
| 300 | 300 mm² | 693A |
¹ Tesla Tech catalogue reference conditions: ambient temperature 30°C; maximum operating/conductor temperature 85°C.
These are cable reference values, not complete-assembly ratings for every installation. Permissible operating current also depends on the connector version, installation method, grouping and applicable cable temperature limits.
Environment
Environmental ratings
| Field | Value |
|---|---|
| Connector ingress protection, when mated | IP67 |
| Connector contact touch protection | IP2X |
| Connector operating temperature | −30°C to +125°C |
| Cable operating temperature, flexing | −25°C to +55°C |
| Cable operating temperature, fixed installation | −25°C to +75°C |
| Cable oil resistance | Oil-resistant |
| Cable UV resistance | UV-resistant |
| Cable water resistance | Resistant to splashes and humidity |
Connector and cable properties are stated separately. Conditions of use for the complete assembly must satisfy both components' limits. IP67 applies to correctly mated connectors; protection when disconnected depends on the protective cap fitted.
Accessories
Protection and handling.
Protect connector interfaces and manage cable handling with accessories selected for the connector type and cable size.
Protective caps
Protect the connector interface during storage, transport and periods of disconnection. IP67 caps provide a sealed closure with secondary locking, while IP53 caps offer a quicker protective cover for less exposed conditions. Select the correct cap for the source or drain connector; each cap type fits the corresponding connector gender across the phase colours.
IP53 Protective Cap

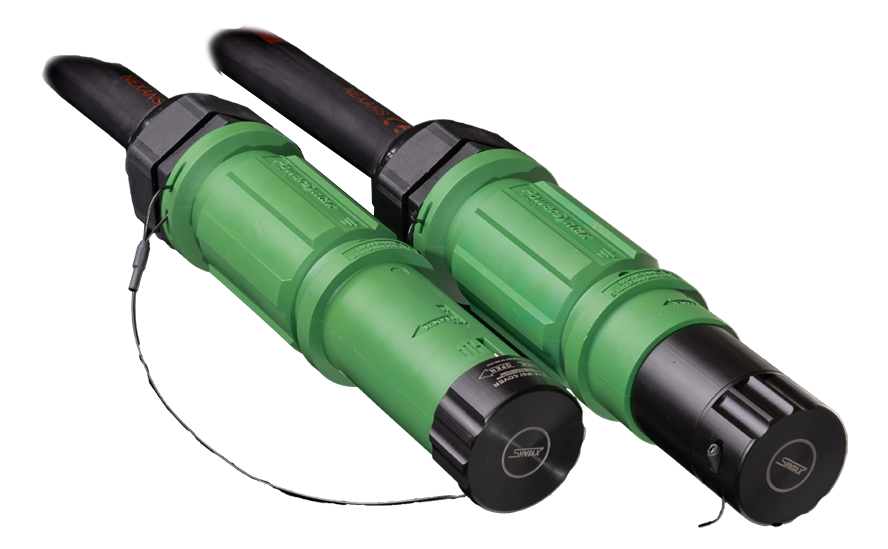

IP67 Protective Cap

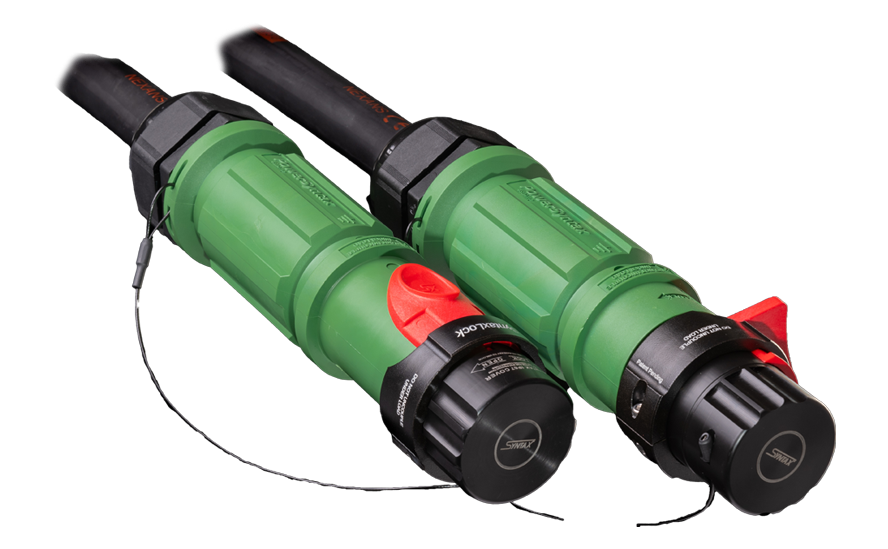

IP67 Protective Cap with SyntaxLock
Pulling Grip Pulling grips
Help guide cables through conduits, structures and cable routes while reducing the need to pull directly on the connector. Select a grip suitable for the cable diameter and intended installation task.
Strain Relief Strain reliefs
Help distribute pulling and bending loads away from the connector interface. Different sizes accommodate the cable diameter and connector arrangement, supporting repeated handling and installation.
Documentation
Downloads
TITANEX® H07RN-F Data Sheet
PDF · EN
Technical Specification
PDF · EN
Product information on this webpage is provided for guidance and may contain errors or omissions. Always refer to the latest downloadable product documentation for the definitive technical specifications and instructions.
